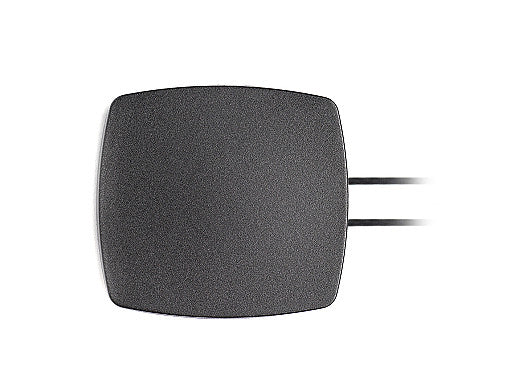

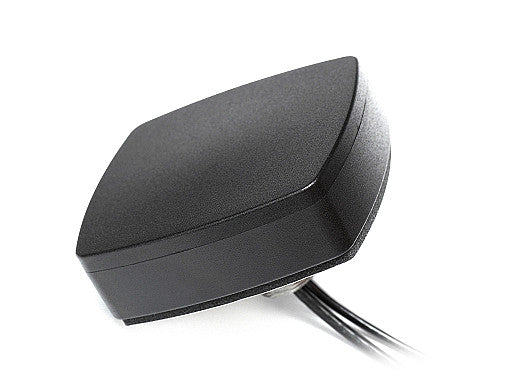

2J6902Ba Wi-Fi 6E/7, ISM screw mount Antenna Phoenix MIMO SMA-M 300cm

The Phoenix 2-in-1 high-performance antenna is designed for next-generation Wi-Fi 6E and Wi-Fi 7 applications, delivering exceptional data rates, reduced latency, and robust connectivity. Its MIMO configuration ensures reliable, high-bandwidth wireless performance, making it ideal for demanding environments such as smart homes, gaming, IoT, and commercial networks. The antenna's omnidirectional design provides 360° coverage, supporting a wide range of wireless standards including Bluetooth, ZigBee, ISM, SigFox, and LoRa. Its rugged, waterproof, and UV-stable housing ensures durability in harsh outdoor conditions, while the anti-rotation screw mount allows secure installation on various surfaces.

Connections

2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

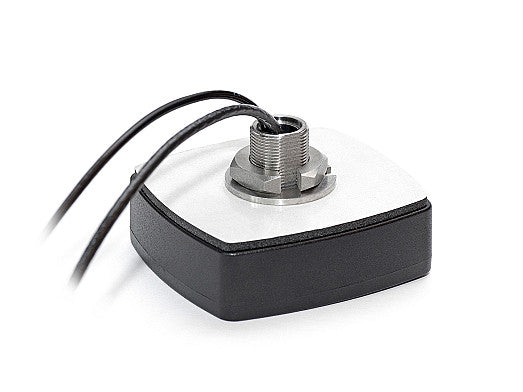

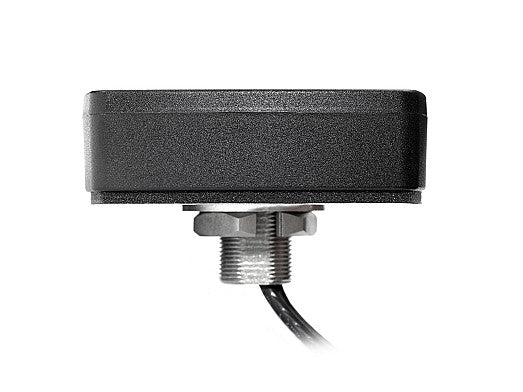

The 2J6902Ba features a robust, waterproof, and dust-resistant housing made of ASA material with UV stability, measuring 80 x 74 x 25.6 mm, ensuring the antenna's protection in harsh environmental conditions. Its design includes an anti-rotation screw mount and is independent of a ground plane, enabling secure installation on various surfaces without limitations. This external antenna comes equipped with a standard SMA-Male connector and a 300 cm long D302 cable, with custom options available upon request. This antenna is IP67 and IP69 certified.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi 6E, Wi-Fi 7, Bluetooth, ZigBee, ISM, SigFox, LoRa
Type: Combination

Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.0:1, ~1.6:1, ~1.6:1
Efficiency (%): ~42.2, ~47.2, ~45.0
Peak Gain (dBi): ~5.2, ~5.2, ~5.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.5:1, ~1.5:1
Efficiency (%): ~35.2, ~49.5, ~49.1
Peak Gain (dBi): ~4.9, ~5.5, ~5.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
