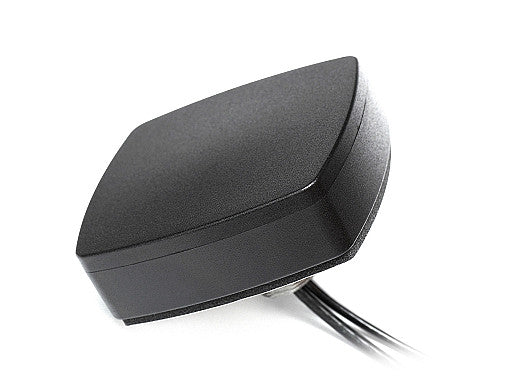

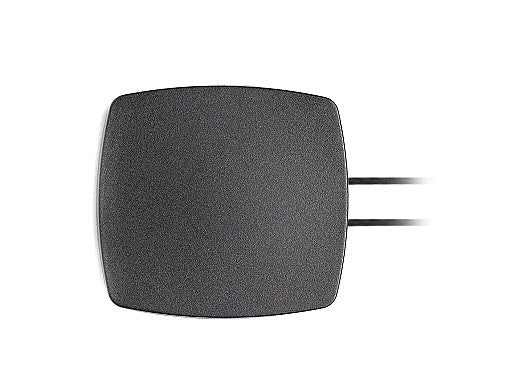

2J6915Ba ISM MIMO screw mount Antenna Phoenix SMA-M 300cm IP67/IP69

This low-profile, 2-in-1 combination antenna is designed for reliable performance in the 868/915 MHz ISM frequency bands, making it ideal for both European and US applications. Its omnidirectional design ensures 360-degree coverage, supporting MIMO technology for enhanced data throughput and signal quality. The antenna is well-suited for IoT, smart home, automotive, RFID, and other industrial or consumer applications requiring robust, long-range, and low-power wireless connectivity. The durable ASA housing, anti-rotation screw mount, and IP67/IP69 certifications provide excellent protection and longevity in challenging outdoor environments.

Connections

2× 868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

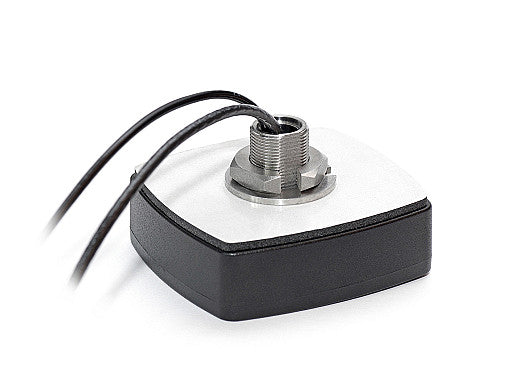

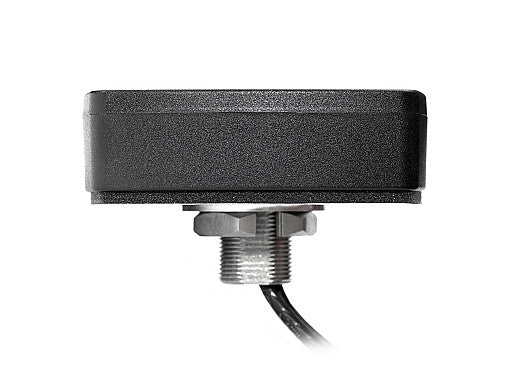

Measuring only 80 × 74 × 25.6, the antenna is ground plane independent and encased in a durable, ASA material housing. Its IP67 and IP69 certifications, and anti-rotation screw mount, offer reliable performance in challenging outdoor environments. This external antenna comes equipped with a standard SMA-Male connector and a 300 cm long D302 cable, with custom options available upon request.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
LPWAN & IoT Communication: Sigfox, LoRa, LPWA, RFID
Mounting: Screw Mount
Short-Range Wireless Standards: ZigBee
Type: Combination

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.2:1, ~1.9:1
Efficiency (%): ~45.4, ~40.8
Peak Gain (dBi): ~3.8, ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~49.9, ~45.6
Peak Gain (dBi): ~5.0, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
