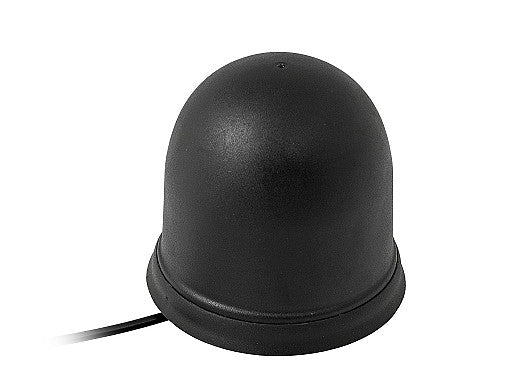

2J6A02B Wi-Fi, ISM screw mount Antenna IP67/IP69K/IK09 Surge Protection

This heavy-duty, compact antenna is engineered for reliable performance in the harshest environments. Featuring robust IP67, IK09, and IP69K certifications, it offers exceptional protection against dust, water, and physical impacts. The antenna is isolated from the ground plane to provide surge protection up to 6kV, ensuring durability and safeguarding wireless equipment from electrical surges and lightning strikes. Its anti-rotation screw mount design allows for secure and easy installation, making it ideal for industrial automation, smart grids, telecommunications infrastructure, public safety, transportation, healthcare, and building automation systems where uninterrupted wireless connectivity is critical.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

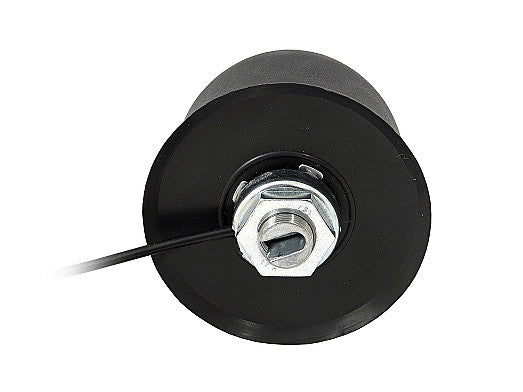

Compact in size, with dimensions of Ø 77.3 × 65.5, this heavy duty antenna is designed to fit seamlessly into various installations. It has been certified to IP67, IK09, and IP69K standards, which ensures its durability and protection against ingress from dust, water, and external impacts. The anti-rotation screw mount ensures easy and secure installation.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~1.8:1
Efficiency (%): ~50.5, ~48
Peak Gain (dBi): ~2.6, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
