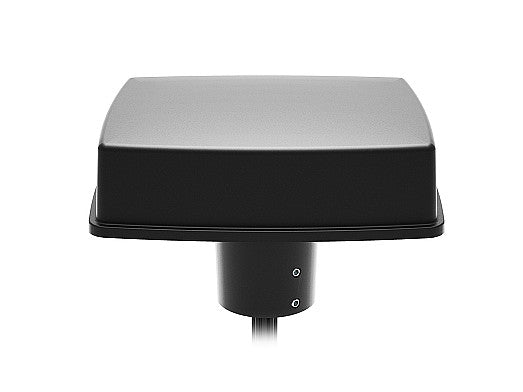

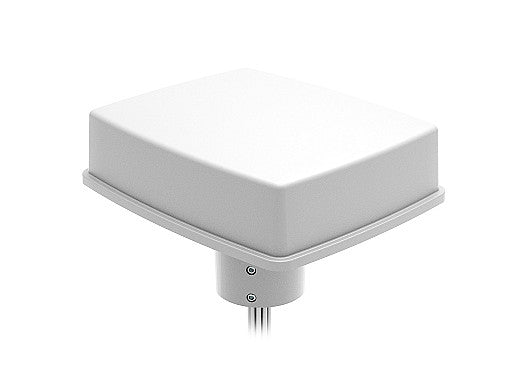

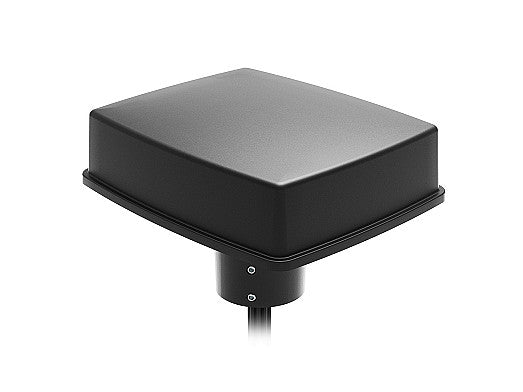

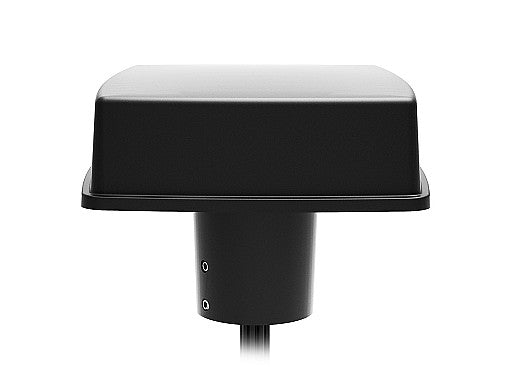

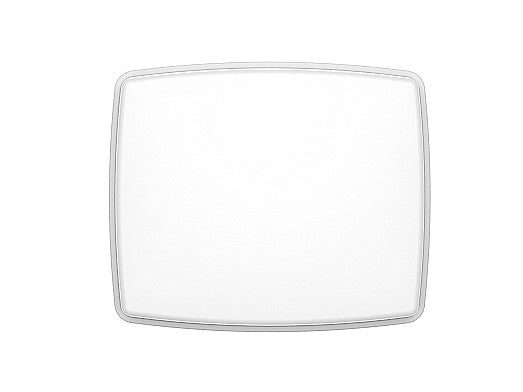

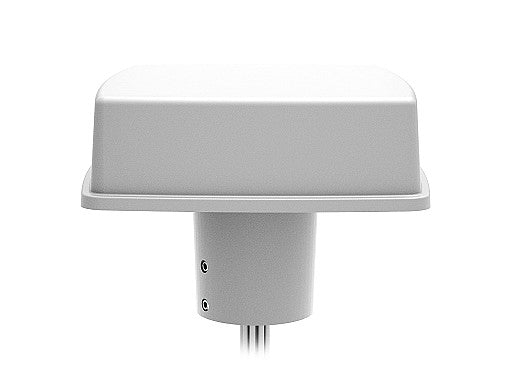

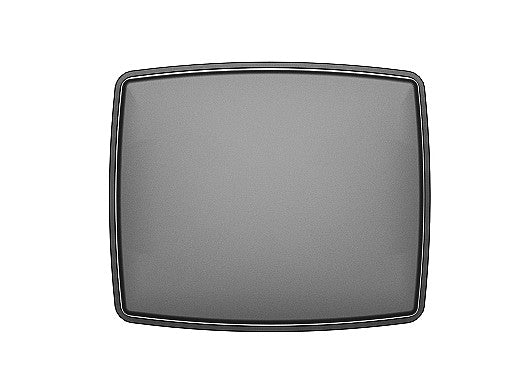

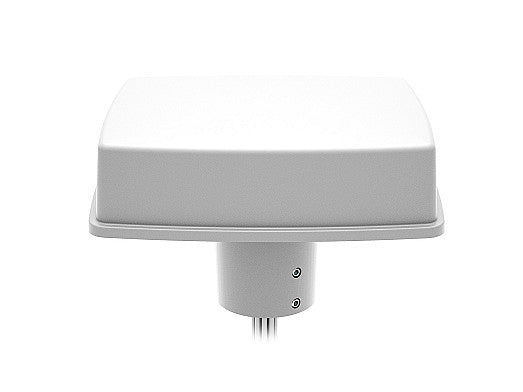

2J6B86JBGFg-B16J 5G, Wi-Fi 6E/7, GNSS pole mount Antenna 8-in-1 SMA-M/RPSMA-M 300cm IP69

This high-efficiency 8-in-1 pole mount antenna is engineered for advanced 5G, Wi-Fi 6E/7, and GNSS connectivity across 617 MHz to 7125 MHz. Its ultra-wideband MIMO design ensures robust, reliable performance for critical communications, mobile networking, and navigation, making it ideal for demanding applications such as public safety, transportation, industrial automation, and fleet management. The antenna supports MU-MIMO for multi-user environments, delivers high gain and efficiency, and is ground plane independent for flexible installation. Its low-profile, rugged housing is IP67/IP69 rated for maximum protection against water and dust, ensuring long-term durability in harsh environments.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
3× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male (5GNR & GNSS), RPSMA-Male (Wi-Fi 6E/7 ISM)
• Cable Length: 300cm
• Cable Type: D302 (5GNR/Wi-Fi 6E/7 ISM), LL100 (GNSS)

Installation / Environmental

This ground plane independent antenna can be easily installed with the pole mounting adaptor that ensures reliable and permanent installations on vehicles or any structures. The low profile housing measures only 53 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure. 2J6B86JBGFg-B16J connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (Wi-Fi 6E / Wi-Fi 7 ISM) and come with 300cm long low loss D302 (5GNR/Wi-Fi 6E / Wi-Fi 7 ISM)/ LL100 (GNSS) cables, but can be customized as needed. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, SigFox, LoRa
Mounting: Screw Mount, Pole Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Efficiency (%): ~37.9, ~45.7, ~44.2, ~36.0
Peak Gain (dBi): ~3.1, ~5.4, ~5.6, ~5.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Efficiency (%): ~28.9, ~48.2, ~43.5, ~36.8
Peak Gain (dBi): ~1.0, ~5.3, ~6.1, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Efficiency (%): ~35.4, ~45.6, ~40.9, ~38.8
Peak Gain (dBi): ~3.2, ~5.3, ~5.5, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Efficiency (%): ~34.8, ~55.4, ~51.0, ~44.8
Peak Gain (dBi): ~2.5, ~6.1, ~6.7, ~6.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 5 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.5:1
Efficiency (%): ~55.6, ~51.9, ~37.5
Peak Gain (dBi): ~4.3, ~6.7, ~6.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 6 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Efficiency (%): ~50.0, ~49.7, ~41.1
Peak Gain (dBi): ~4.1, ~6.8, ~6.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 7 - 2.4 / 5.0 / 6.0 GHz Tri-Band Wi-Fi 6E / Wi-Fi 7

Standards: Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Efficiency (%): ~58.0, ~49.7, ~36.5
Peak Gain (dBi): ~4.4, ~6.7, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 8 - GPS/GLONASS

Standards: GPS, GLONASS, QZSS, Galileo
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~4.5, ~5.0
Impedance (Ohm): 50
Radiation Pattern: Hemispherical
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
