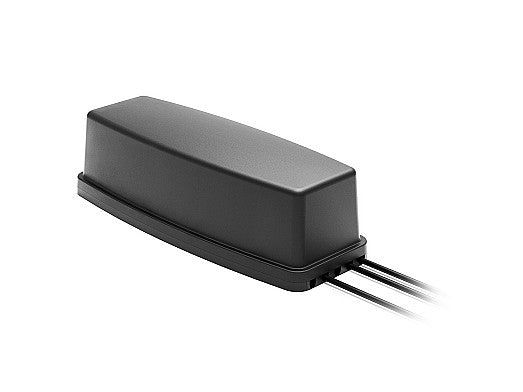

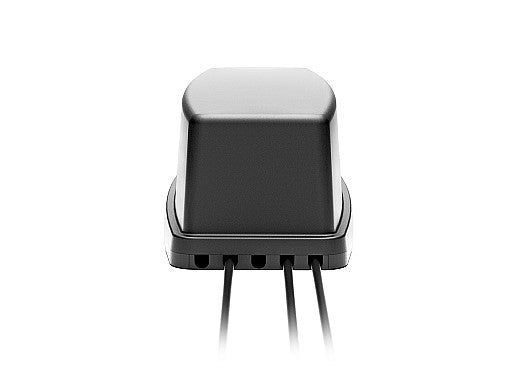

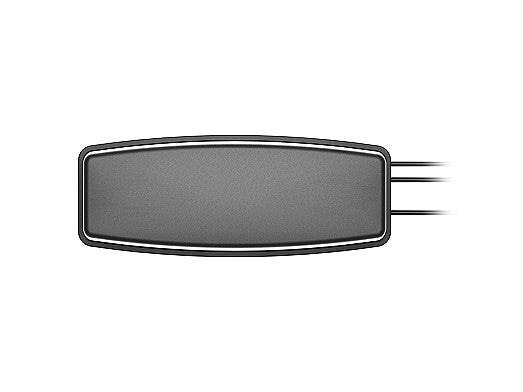

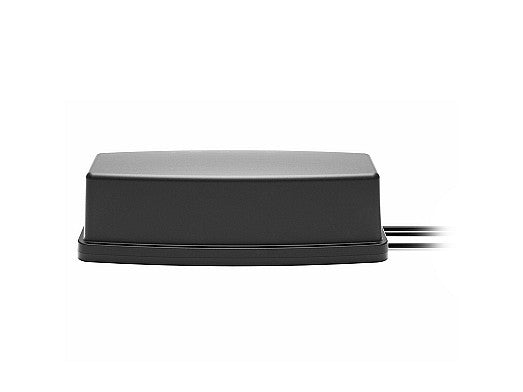

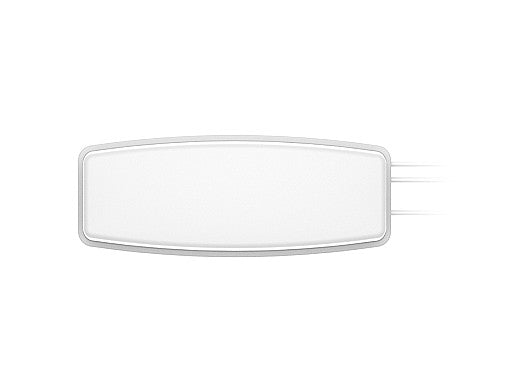

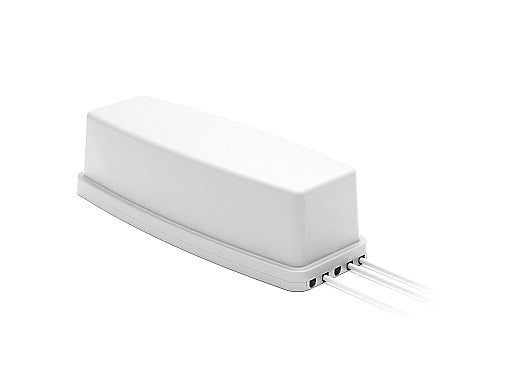

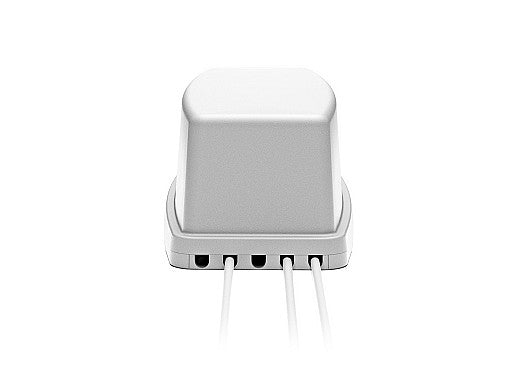

2J6C02Mb Wi-Fi 6E/7, ISM magnetic mount Antenna Bullion 3-in-1 SMA-M 300cm IP67/IP69

Unlock ultra-fast and reliable wireless connectivity with this high-performance 3-in-1 MIMO antenna, designed for Wi-Fi 6E/7, Bluetooth, ZigBee, ISM, SigFox, and LoRa applications. Its tri-band configuration supports 2.4, 5.0, and 6.0 GHz frequencies, delivering increased data throughput, reduced interference, and robust performance for demanding environments. Ideal for high-density networks, IoT deployments, VR/AR, video streaming, public Wi-Fi hotspots, and smart transportation, this antenna ensures seamless connectivity for multiple devices and applications.

Connections

3× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

The 2J6C02Mb is fully IP67/IP69 rated and manufactured with a lightweight ASA UV stable material that provides durability against moisture without any compromise to performance. This ground plane independent antenna measures only 193 x 76.3 x 56.1 mm and with magnetic mounting making it ideal for permanent or temporary installations on any surface.  Please see 2J6C02Bb for the 3-in-1 screw mounting antenna option or the 2J6C02Mc for the 4-in-1 magnetic option.
Cables 1-3 are low loss LL195 that measure 300 cm in length and feed through the magnetic mount connection located at the antenna base. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs.
All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Magnetic Mount
Type: Combination

Connection 1 - Wi-Fi 6E/7, ISM, LPWA, Bluetooth, ZigBee

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.3:1, ~1.4:1
Efficiency (%): ~63.7, ~61.3, ~48.1
Peak Gain (dBi): ~5.9, ~6.3, ~6.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Wi-Fi 6E/7, ISM, LPWA, Bluetooth, ZigBee

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~1.4:1, ~1.6:1
Efficiency (%): ~63.2, ~62.1, ~48.7
Peak Gain (dBi): ~4.8, ~6.3, ~6.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - Wi-Fi 6E/7, ISM, LPWA, Bluetooth, ZigBee

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.9:1, ~1.6:1
Efficiency (%): ~61.8, ~52.0, ~52.1
Peak Gain (dBi): ~4.4, ~6.3, ~7.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
