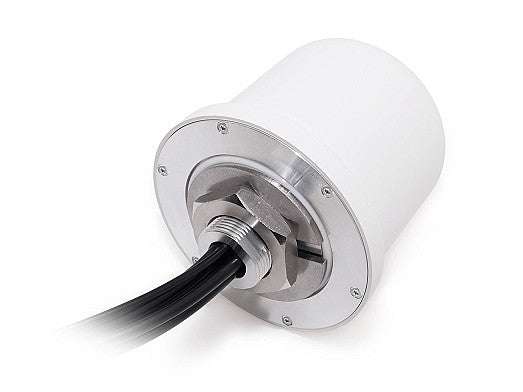

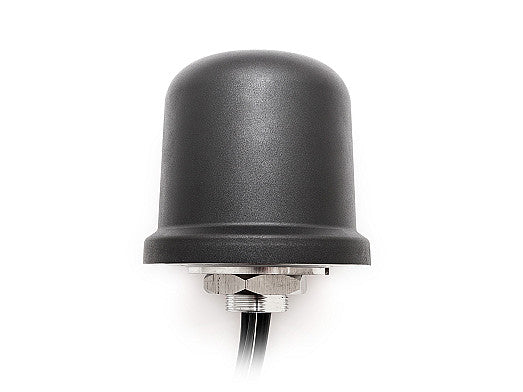

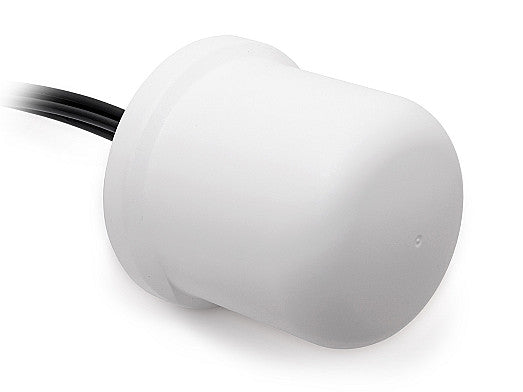

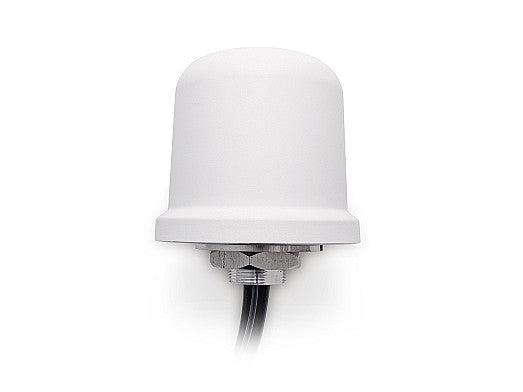

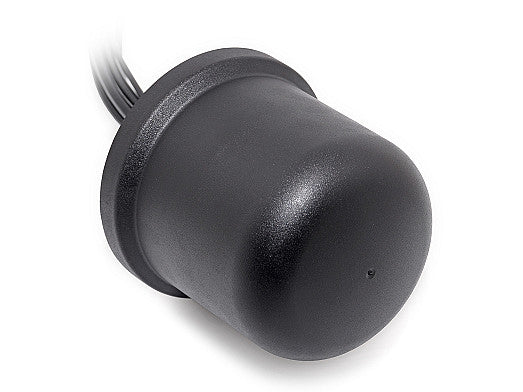

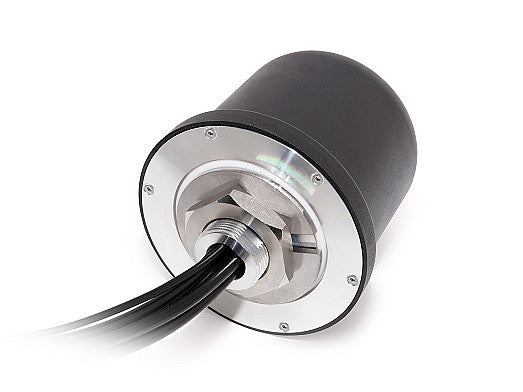

2J7002Bc Wi-Fi, ISM screw mount Antenna 4-in-1 IP67/IP69K

This compact, heavy-duty antenna delivers high-performance 4× Wi-Fi MIMO connectivity for 2.4/5.0 GHz ISM bands, making it ideal for demanding industrial and commercial applications. Its advanced MIMO design ensures low latency and high data transfer rates, while the ground plane independent construction and anti-rotation screw mount provide reliable installation. The robust housing is rated IP67 and IP69K for maximum protection against dust, water, and vandalism, and is tested for vibration, shock, and fire resistance. Customizable cables and connectors allow for flexible integration into a wide range of systems and environments.

Connections

4× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Screw Mount
Type: Combination

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.9:1, ~1.6:1
Efficiency (%): ~58, ~64
Peak Gain (dBi): ~5.6, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.6:1, ~1.5:1
Efficiency (%): ~51, ~55
Peak Gain (dBi): ~3.9, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM

Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.1:1, ~1.6:1
Efficiency (%): ~57, ~59
Peak Gain (dBi): ~5.5, ~4.4

Connection 4 - 2.4/5.0 GHz ISM

Efficiency (%): ~52, ~53
Peak Gain (dBi): ~3.4, ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~1.5:1
