2J7050JGFa 4G/LTE, Wi-Fi, ISM, GNSS pole mount Antenna 5-in-1 IP67/IP69

This heavy-duty antenna delivers reliable multi-technology connectivity in a compact form factor. Featuring a 5-in-1 configuration, it supports LTE-MIMO, dual-band Wi-Fi MIMO, and active GNSS (GPS, GLONASS, Galileo, QZSS), making it ideal for demanding applications that require robust data integrity and high efficiency across global 4G LTE, 3G, and 2G bands. Its high gain, low noise, and post-filtered GNSS design enable precise geo-location and navigation, while dual-band Wi-Fi MIMO ensures strong wireless performance. The antenna is well-suited for public safety, transportation, fleet management, HD video broadcasting, and critical communications.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

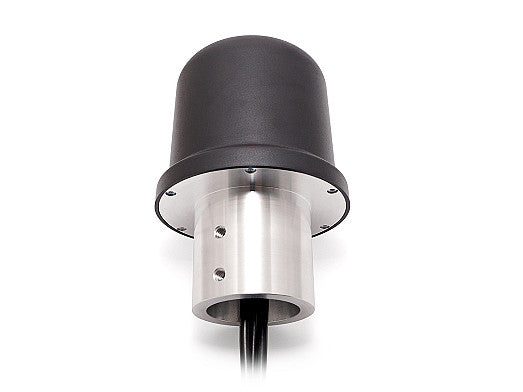

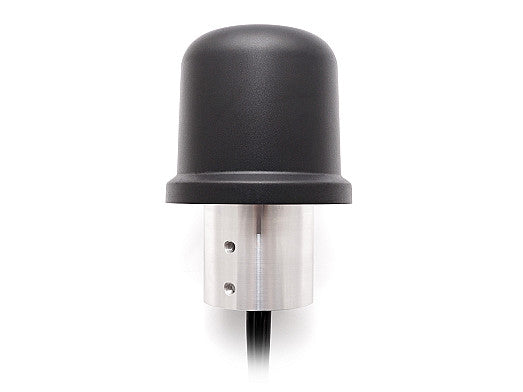

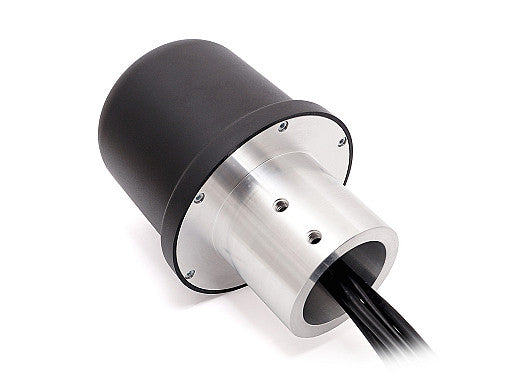

This antenna comes with a specific mast mounting installation system made of aluminum alloy implementing a low loss cables thread through a single mounting hole for easy installation. This antenna provides an anti-rotation mounting design, removing the possibility of cables getting cut through the lifetime of the product. Cables and connectors can be customized to specific requirements based on the end-use application and needs.

The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance. This antenna design has also been tested to comply with EN61373 (Vibration and Shock) and EN45545-2 (Fire Protection), while the UV stable housing material is available in a range of colored finishes.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, Sigfox, LoRa, RPMA
Mounting: Pole Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, BLE, ZigBee
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.6:1, ~1.7:1
Efficiency (%): ~57, ~57, ~47
Peak Gain (dBi): ~2.1, ~4.2, ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.6:1, ~1.4:1
Efficiency (%): ~63, ~54, ~57
Peak Gain (dBi): ~3.0, ~3.2, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM

Standards: Wi-Fi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.9:1, ~1.6:1
Efficiency (%): ~58, ~64
Peak Gain (dBi): ~5.6, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4/5.0 GHz ISM

Standards: Wi-Fi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.1:1, ~1.6:1
Efficiency (%): ~57, ~59
Peak Gain (dBi): ~5.5, ~4.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 5 - GPS/GLONASS/Galileo/QZSS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
