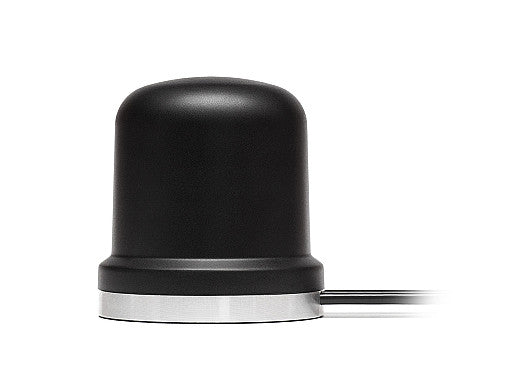

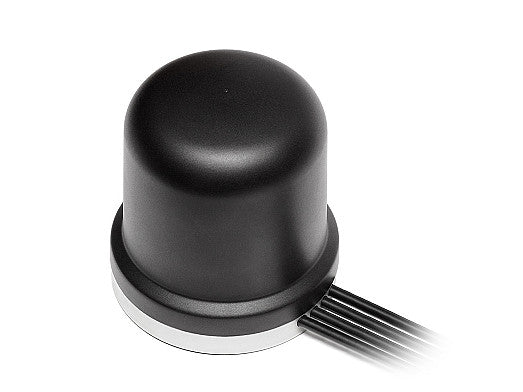

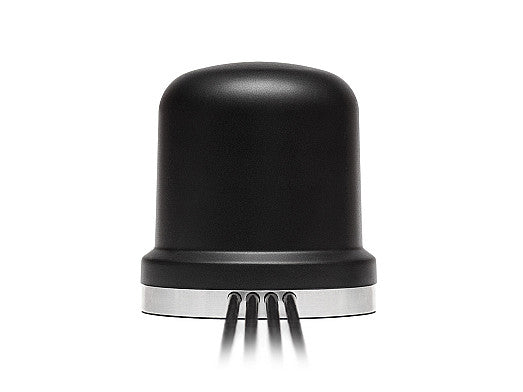

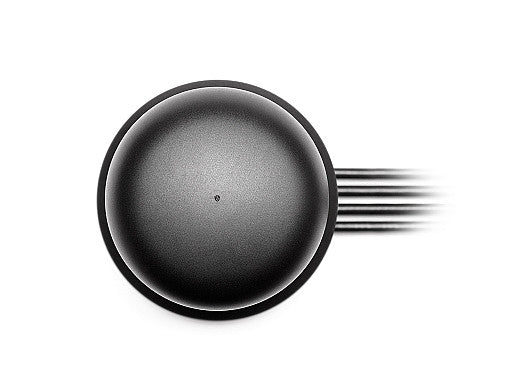

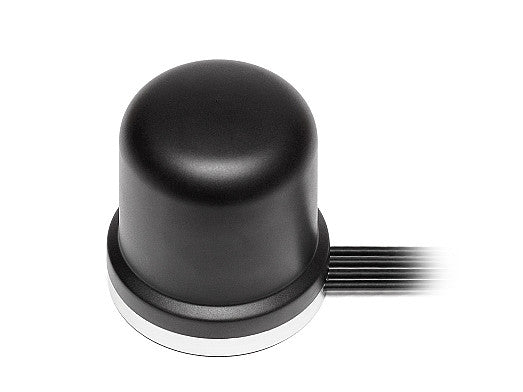

2J7085Mc 5G, Wi-Fi 6E/7 magnetic mount Antenna Medusa 4-in-1 IP67/IP69/IK09

This heavy-duty 4-in-1 antenna delivers high-performance connectivity by combining two 5G MIMO and two Wi-Fi 6E/7 MIMO antennas in a single, ultra-wideband solution. Designed for demanding external applications, it supports 5GNR, 4G LTE, FirstNet, CBRS, LPWA, NB-IoT, 3G, 2G, Wi-Fi 6E/7, Bluetooth, ZigBee, ISM, Sigfox, and LoRa standards. Its robust, low-profile housing is impact, dust, and water resistant, making it ideal for harsh environments. The antenna is ground plane independent and features a magnetic mount for quick and secure installation on various surfaces. Perfect for mobile networks, machine control, asset tracking, automotive, IoT, HD video streaming, smart metering, and more.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

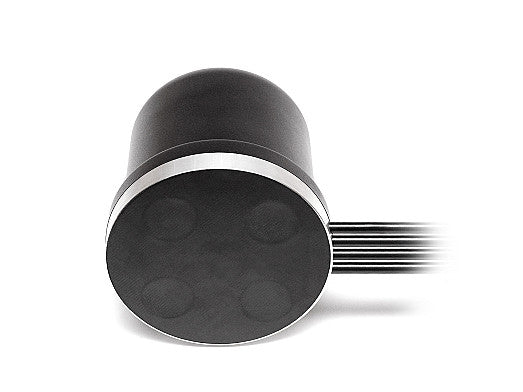

The antenna is protected with a robust and heavy-duty housing made with (ASA) UV stable material, known for its thermal resistant properties, and an aluminum alloy base. This antenna is impact resistant, dust resistant, and waterproof with full IP67, IP69, and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and magnetic mount installation offer easy installations on a wide range of surfaces. All cables and connectors can be customized.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Magnetic Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.3, ~-10.8, ~-9.4, ~-6.7
VSWR: ~3.6:1, ~2.0:1, ~2.3:1, ~2.9:1
Efficiency (%): ~45.7, ~58.8, ~49.2, ~31.9
Peak Gain (dBi): ~0.4, ~4.5, ~5.3, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.5, ~-11.4, ~-11.3, ~-9.5
VSWR: ~3.5:1, ~1.8:1, ~1.9:1, ~2.1:1
Efficiency (%): ~45.3, ~58.3, ~48.8, ~42.2
Peak Gain (dBi): ~0.5, ~4.1, ~4.9, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.4:1, ~1.6:1, ~2.5:1
Efficiency (%): ~40.2, ~49.0, ~33.8
Peak Gain (dBi): ~3.7, ~4.8, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.7:1, ~2.7:1
Efficiency (%): ~47.3, ~48.4, ~29.2
Peak Gain (dBi): ~4.6, ~5.0, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
