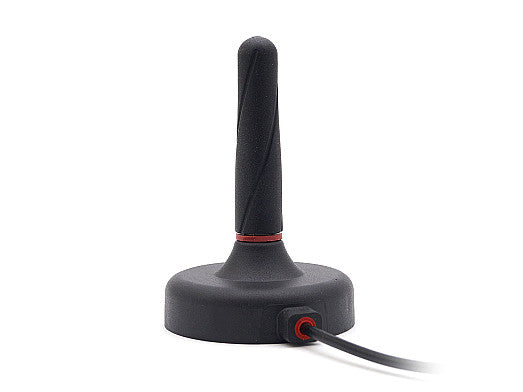

2J7515M-915 ISM magnetic mount Antenna IP67 IP69

This high-performance antenna is designed for reliable operation in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its robust construction ensures durability in demanding environments, while the magnetic mount allows for quick and flexible installation on metal surfaces. The antenna is ground plane dependent and offers high efficiency and peak gain for optimal wireless performance. With IP67 and IP69 ratings, it is protected against dust and water ingress, making it suitable for both indoor and outdoor deployments.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa, RFID
Frequency: 902-928 MHz
VSWR: ~1.4:1
Efficiency (%): ~66
Peak Gain (dBi): ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF
