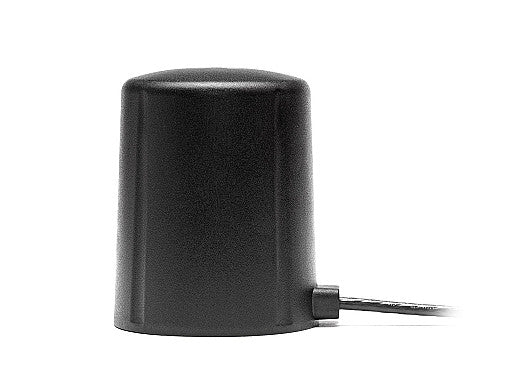

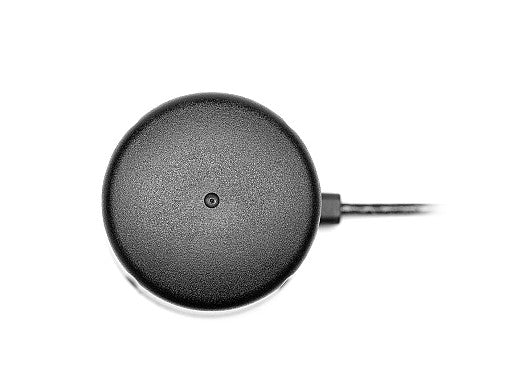

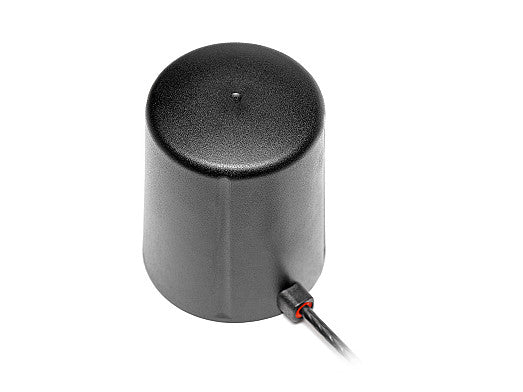

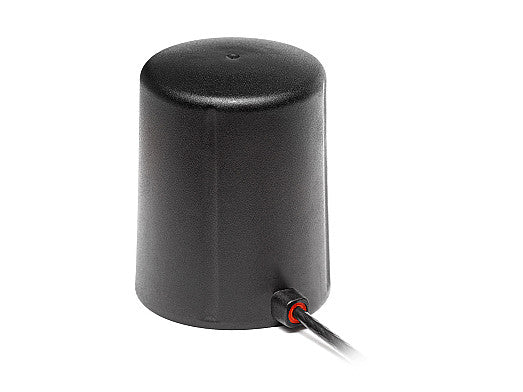

2J7702M Wi-Fi 6E/7, ISM magnetic mount Antenna customizable ground plane dependent

This high-performance magnetic mount antenna is designed for Wi-Fi 6E, Wi-Fi 7, and ISM applications, delivering reliable connectivity across the 2.4, 5.0, and 6.0 GHz bands. Its ground plane dependent design ensures optimal performance in demanding environments, making it ideal for smart home, smart city, industrial, and transportation applications. The antenna is built for durability with IP67, IP69, and IK09 ratings, and supports a wide range of use cases including entertainment, healthcare, automation, and IoT deployments.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Antenna Technologies: Monopole

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~2.1:1, ~2.1:1
Efficiency (%): ~61.3, ~31.3, ~30.1
Peak Gain (dBi): ~3.8, ~3.0, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
