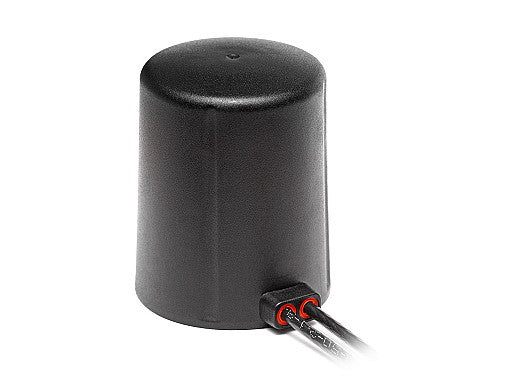

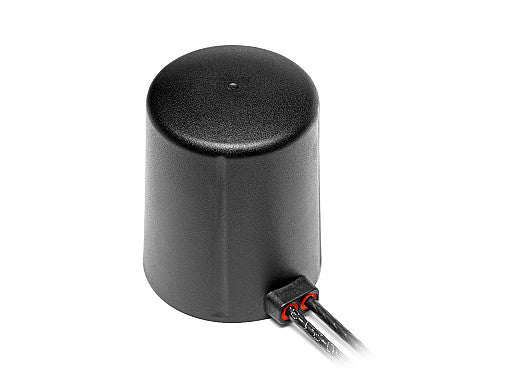

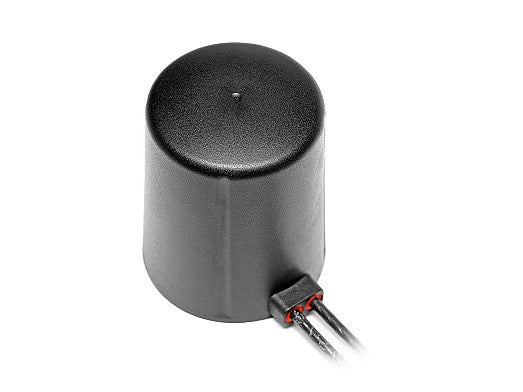

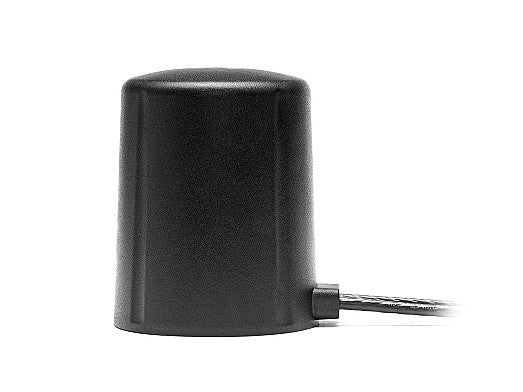

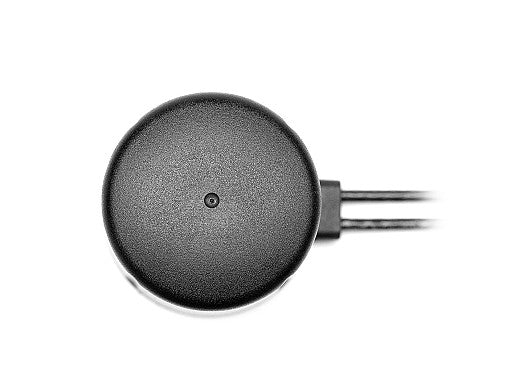

2J7739MGF GNSS, ISM magnetic mount Antenna IP67/IP69/IK09

This high-performance antenna is designed for reliable operation in demanding environments, combining GNSS and ISM technologies for versatile connectivity. Its robust magnetic mount ensures secure installation on metal surfaces, making it ideal for applications such as logistics, smart cities, fleet management, and industrial IoT. The antenna features ground plane dependence, active GNSS with pre-filter, and heavy-duty construction for enhanced durability in harsh conditions.

Connections

GPS/GLO/QZSS/Galileo/L1
915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
LPWAN & IoT Communication: Sigfox, LoRa, LPWA, RFID, ISM
Type: Combination

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.8:1
Efficiency (%): ~59
Peak Gain (dBi): ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
