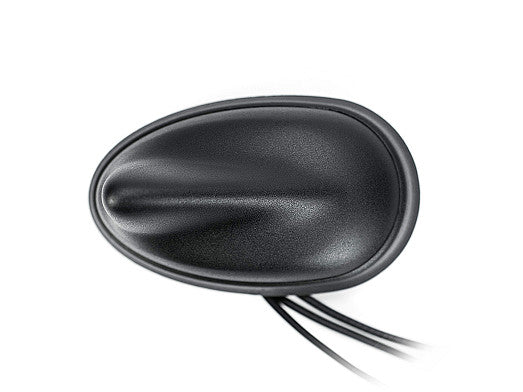

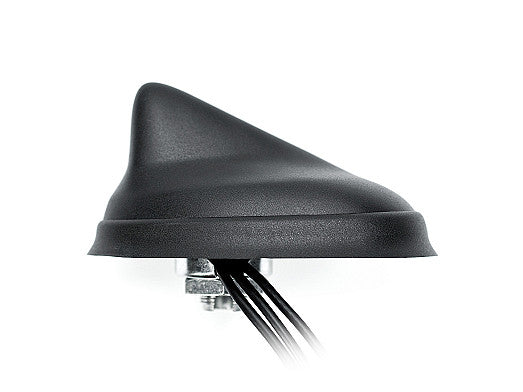

2J8606BGF 3G, 2G, GNSS, Wi-Fi, ISM screw mount Antenna IP69 IP67

This robust combination antenna is designed for reliable performance across cellular, GNSS, and 2.4 GHz ISM/Wi-Fi/Bluetooth/ZigBee applications. Its screw mount form factor and high ingress protection (IP69, IP67) make it ideal for demanding environments where durability and weather resistance are essential. The antenna is suitable for a wide range of applications including mobile and cellular networks, asset tracking, telematics, smart cities, and industrial automation.

Connections

3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1
2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External

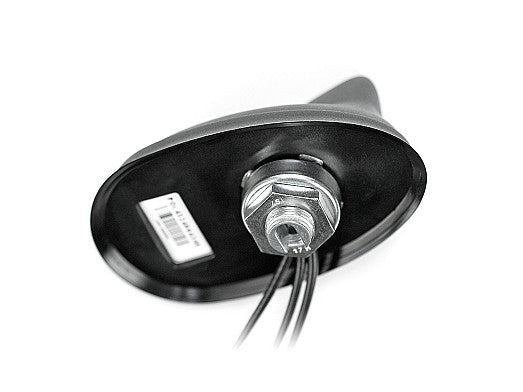

Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~3.0:1, ~1.9:1
Efficiency (%): ~11.3, ~20.4
Peak Gain (dBi): ~-5.1, ~0.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100

Connection 2 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~1.5:1
Efficiency (%): ~27.4
Peak Gain (dBi): ~0.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
Impedance (Ohm): 50
Active Gain (dB): 26 @ 3V, 27 @ 5V
Saw Filter Type: Pre-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40 - 137
