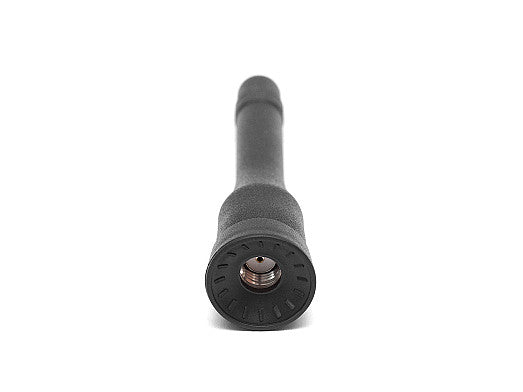

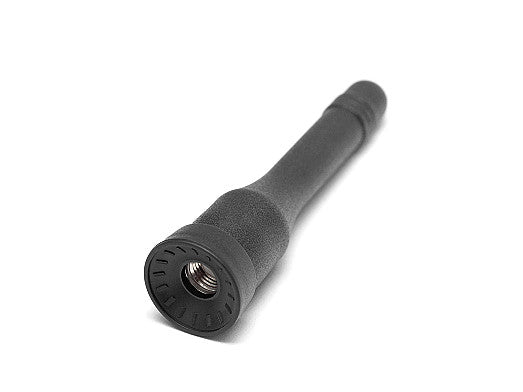

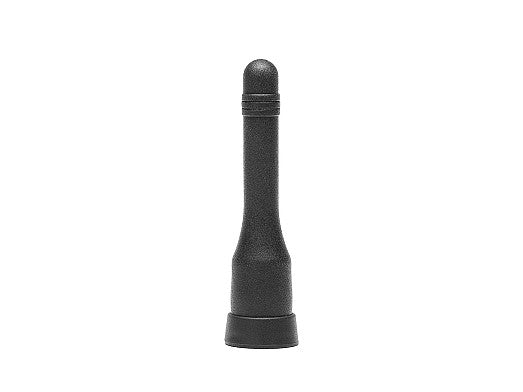

2J0502-C115N Wi-Fi, ISM connector mount Antenna IP67

This compact antenna is designed for reliable dual-band Wi-Fi and ISM connectivity, making it ideal for smart home, industrial, and IoT applications. Its waterproof construction and robust design ensure dependable performance in demanding environments. The antenna supports a wide range of wireless standards, including Wi-Fi, Bluetooth, ZigBee, and ISM bands, providing versatile connectivity for various devices and installations.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.6:1, ~2.1:1
Efficiency (%): ~52.2, ~53.1
Peak Gain (dBi): ~2.8, ~2.4
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25
