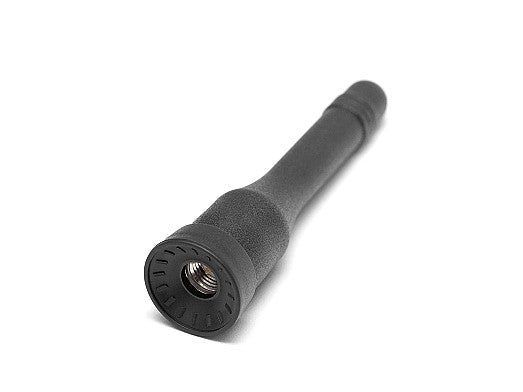

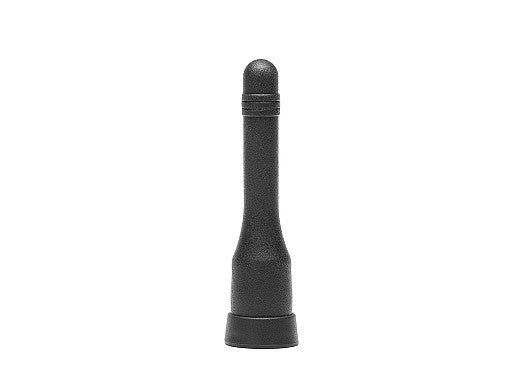

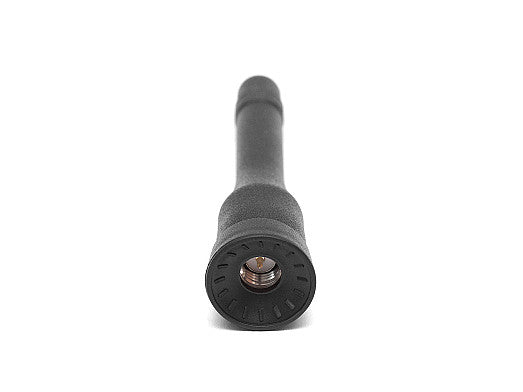

2J0504-C20N 3G, 2G connector mount Monopole Antenna

This compact monopole antenna is designed for reliable 3G and 2G cellular connectivity in a wide range of applications. Its omni-directional radiation pattern and ground plane dependent design ensure consistent signal performance, making it ideal for mobile networks, asset tracking, telematics, and industrial monitoring. The small form factor and waterproof gasket make it suitable for outdoor and rugged environments.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 3G, 2G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.7:1, ~3.1:1
Efficiency (%): ~60.7, ~48.6
Peak Gain (dBi): ~0.6, ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
