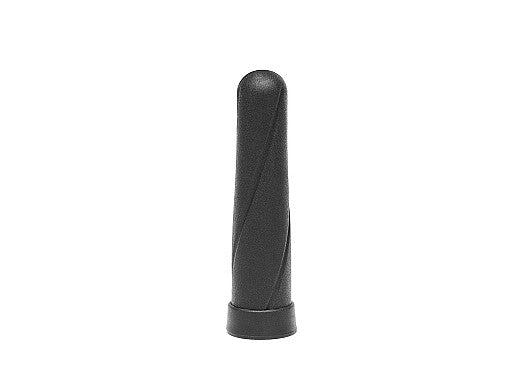

2J0710-C708N ISM monopole Antenna connector mount SMA-M

This compact, low-profile antenna is optimized for the 433 MHz ISM band, making it ideal for IoT, M2M, and smart system applications. Its ground plane dependent design ensures reliable performance for remote monitoring, smart metering, home automation, medical devices, and industrial automation. The antenna delivers omni-directional coverage and robust signal strength, even in environments with obstructions, supporting mesh networks, security systems, and asset tracking.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Connector & Cable

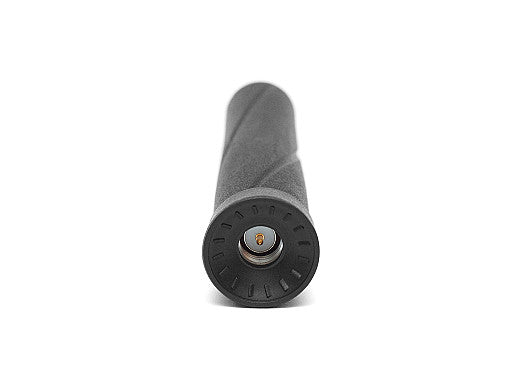

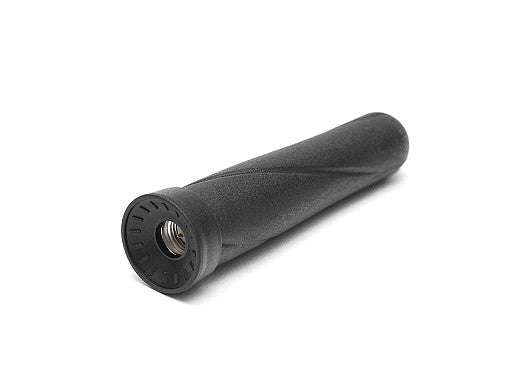

• Connector Type: SMA-Male Connector

Installation / Environmental

It is a ground plane dependent antenna and the installation is very easy by simply mounting the antenna on a suitable ground. The antenna is manufactured without any hazardous materials and is both REACH and RoHS compliant. This antenna is manufactured with high-grade TPE UV stable that is anti-corrosive material and is resistant to physical impacts making it extremely durable in temperatures ranging between -40C and +85C ideal for harsh outdoor applications. The 2J0710-C708N comes with a standard SMA-Male connector. This antenna is fully customizable as we also offer a large selection of customized connector types, cable lengths, and cable types.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.6:1
Efficiency (%): ~50
Peak Gain (dBi): ~-1.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
