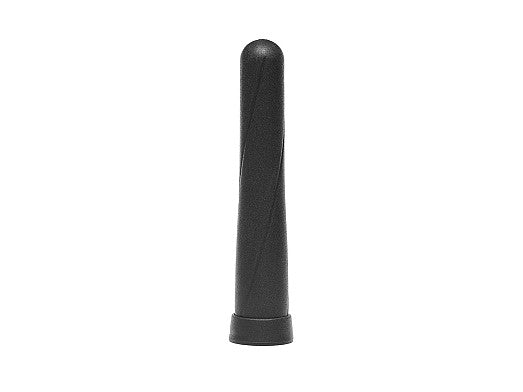

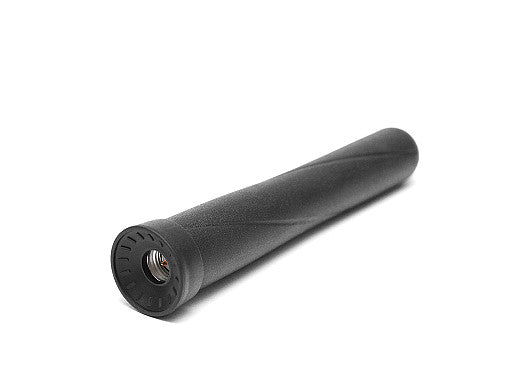

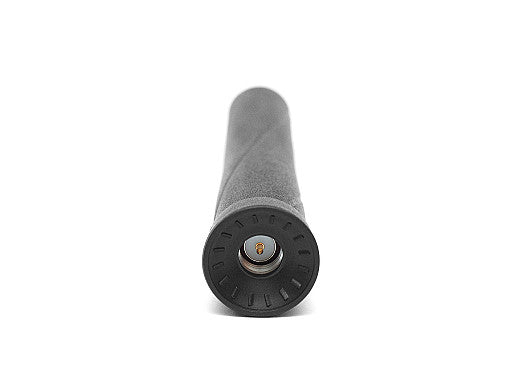

2J0819z-C708N ISM Antenna connector mount Monopole

This compact ISM antenna is designed for reliable performance in the 169 MHz ERMES band, making it ideal for smart metering, industrial IoT, and smart city applications. Its small form factor and ground plane dependent design allow for easy integration into a variety of external installations, while maintaining high efficiency and durability. The antenna is suitable for use in challenging environments, including utilities and resource management systems.

Connections

169MHz/ERMES/VHF

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 169 MHz ISM (ERMES)

Standards: ERMES, ISM, VHF
Frequency: 169.4-169.8 MHz
Return Loss (dB): ~-23.0
VSWR: ~1.15:1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF
