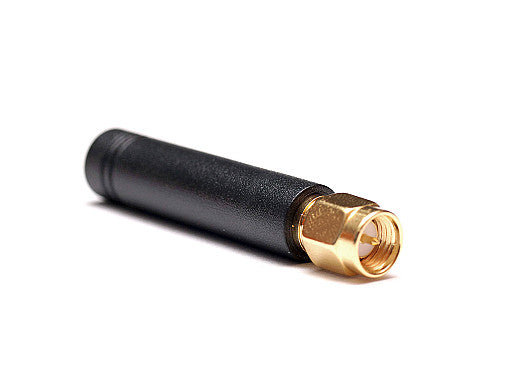

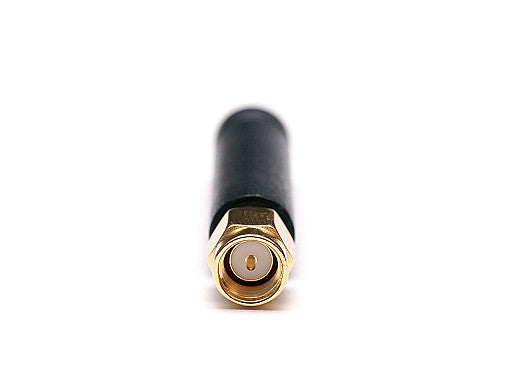

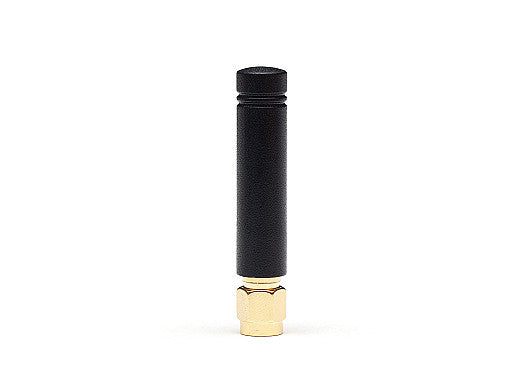

2J0B04-C885G 3G, 2G connector mount Antenna

This low-profile omni-directional antenna is designed for reliable 3G and 2G cellular connectivity. Its compact form factor and ground plane dependent design make it ideal for applications where space is limited, such as wearables, asset tracking, machine control, and automotive systems. The antenna delivers stable performance with a peak gain of up to 2.9 dBi, ensuring strong signal reception for mobile and cellular networks.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 3G, 2G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.4:1, ~2.6:1
Efficiency (%): ~68.3, ~50.1
Peak Gain (dBi): ~2.9, ~1.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
