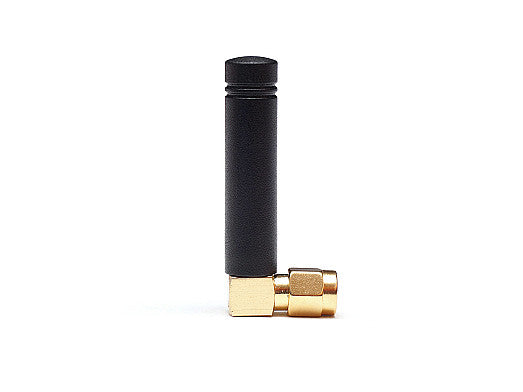

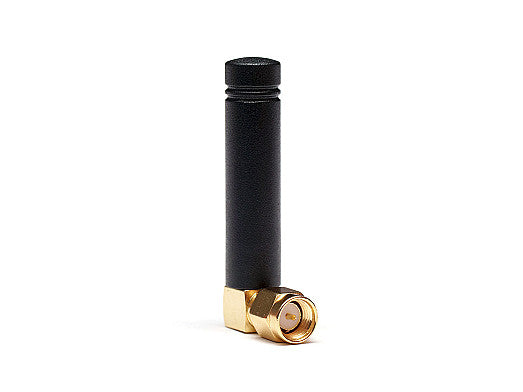

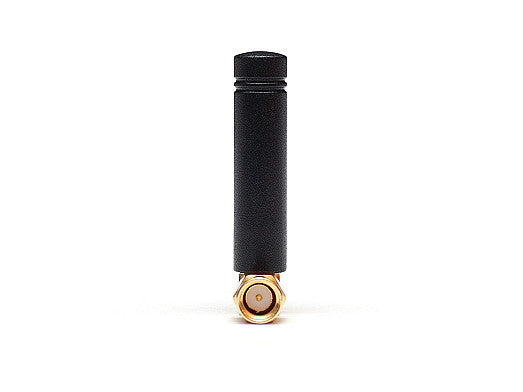

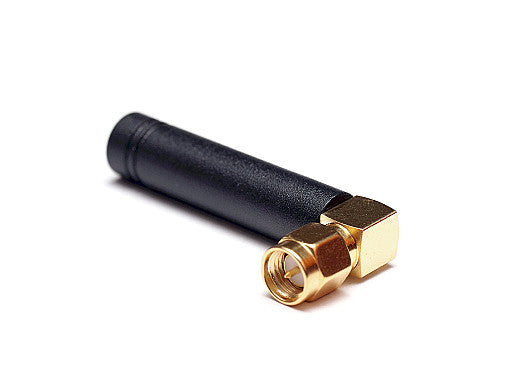

2J0B15-915-C884G ISM connector mount Antenna SMA-Male

This high-efficiency antenna is optimized for the 902–928 MHz ISM frequency bands, making it ideal for industrial, scientific, and medical applications. Its compact, low-profile design is ground plane dependent and supports reliable connectivity for IoT, remote monitoring, smart metering, home automation, medical devices, and more. The antenna delivers stable performance even through walls and is unaffected by obstacles that typically impact higher-frequency technologies. Its easy integration and multiple connector options make it suitable for a wide range of installations.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Connector & Cable

• Connector Type: SMA-Male

Installation / Environmental

For specialized applications, this cable free antenna solution can be retrofitted with a straight or right-angle SMA-Male-R/A standard connector.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.6:1
Efficiency (%): ~75
Peak Gain (dBi): ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF
