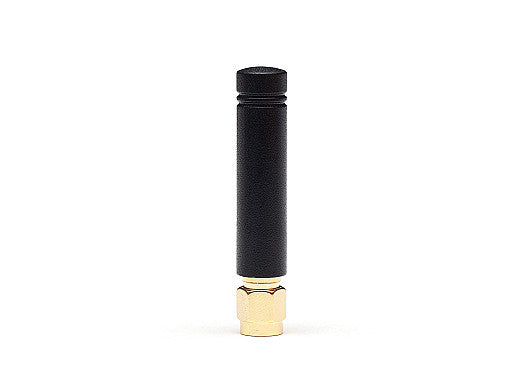

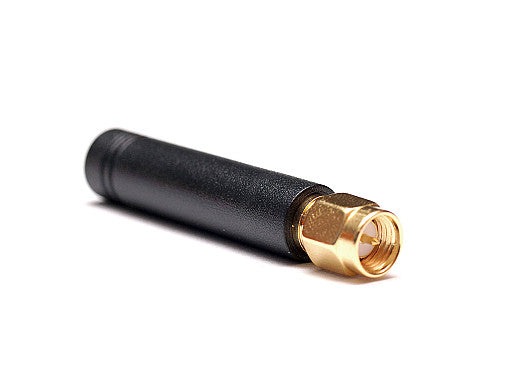

2J0B24-C885G 4G/LTE connector mount Antenna SMA-M

This compact antenna is engineered for high efficiency and reliable performance in narrowband IoT and LTE applications. Its small form factor makes it ideal for installations with space constraints, while maintaining strong signal quality and uninterrupted connectivity. Designed for use in GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, and LTE (NB-IoT) networks, it is suitable for a wide range of applications including HD video transmission, dash cameras, fleet management, logistics, LTE routers, and other cellular-based systems.

• Improves signal strength and data throughput
• Supports a broad range of cellular technologies (4G/LTE, 3G, 2G)
• Ground plane dependent for optimal performance
• Easy integration and installation
• UV-stable ABS housing for durability in direct sunlight

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

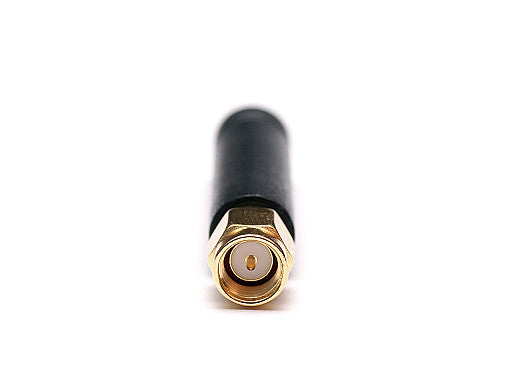

• Connector Type: SMA-Male

Installation / Environmental

This series is available in two configurations: a straight, right-angle with a SMA-Male standard connector allowing the mounting in any space restriction installation. For direct sunlight applications, the production material used is black ABS UV stable, protecting the antenna from a temperature of -40°C to 85°C. This antenna was built with a complete RoHS compliance manufacturing process.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Cellular/4G LTE

Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, LTE (NB-IoT)
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.8:1, ~2.0:1, ~7.5:1
Efficiency (%): ~62.4, ~62.4, ~15.4
Peak Gain (dBi): ~1.2, ~3.7, ~-6.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
