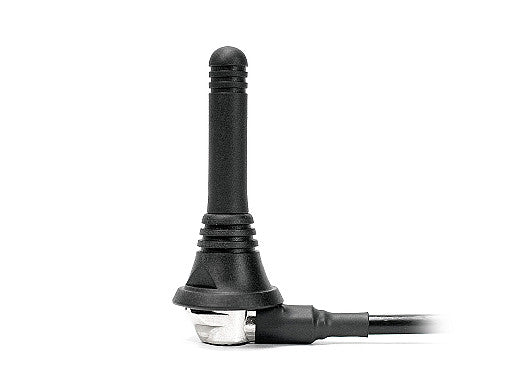

2J1204B 3G, 2G screw mount Antenna

This compact screw mount antenna is designed for reliable 3G and 2G cellular connectivity in a variety of applications. Its ground plane dependent design ensures optimal performance in mobile networks, asset tracking, telematics, and more. The small form factor makes it suitable for installations where space is limited, while the robust construction supports use in automotive, industrial, and security environments.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.7:1, ~2.2:1
Efficiency (%): ~60.6, ~41.5
Peak Gain (dBi): ~1.9, ~0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100
