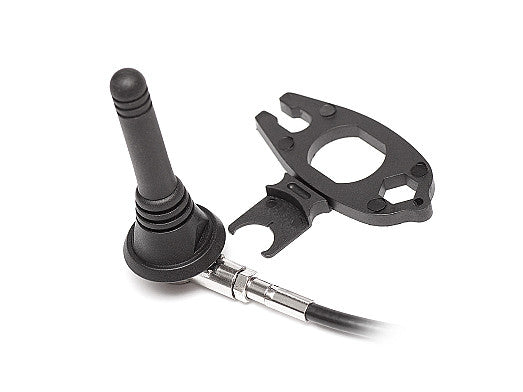

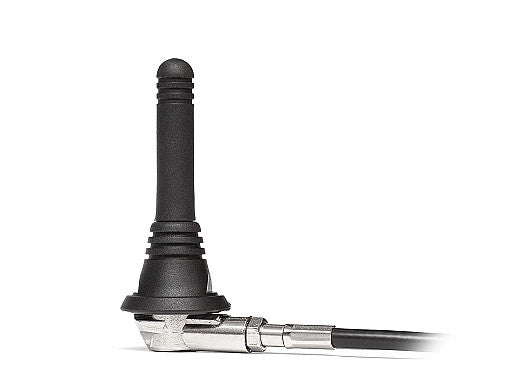

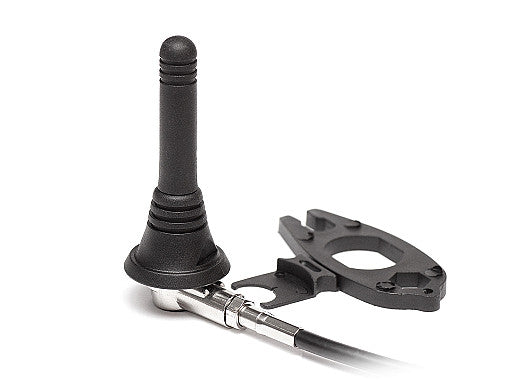

2J1204Bz 3G, 2G screw mount Antenna

This compact screw mount antenna is designed for reliable 3G and 2G cellular connectivity. Its ground plane dependent design ensures stable performance in a variety of applications, including mobile networks, asset tracking, machine control, and telecommunication systems. The small form factor makes it ideal for installations where space is limited, and the detachable cable allows for flexible integration and easy customization to suit specific project requirements.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - CELLULAR

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.6:1, ~1.7:1
Efficiency (%): ~52.2, ~40.7
Peak Gain (dBi): ~1.3, ~0.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100
