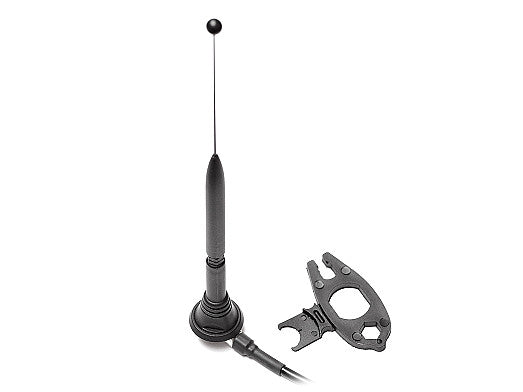

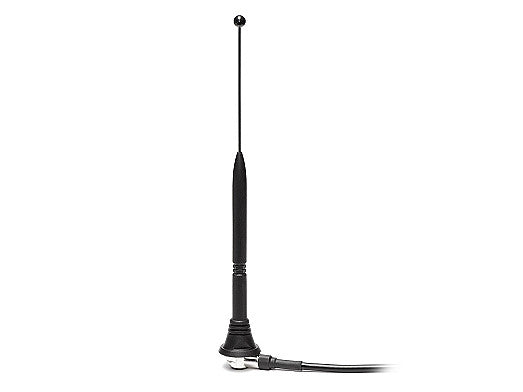

2J1504B 3G, 2G screw mount Antenna

This robust screw mount antenna is designed for reliable 3G and 2G cellular connectivity. Its ground plane dependent design ensures optimal performance for a wide range of applications, including mobile networks, machine control, asset tracking, automotive, and telecommunication systems. The antenna's durable construction makes it suitable for demanding environments where consistent signal quality is essential.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~2.6:1
Efficiency (%): ~62.9, ~30.5
Peak Gain (dBi): ~3.5, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100
