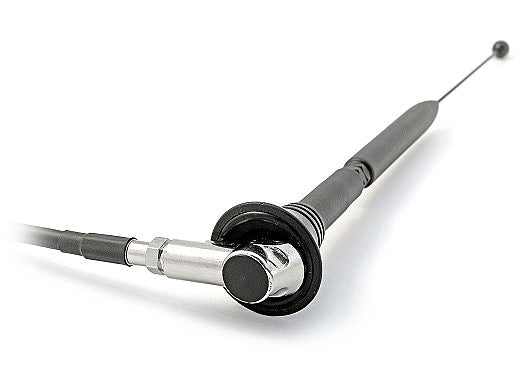

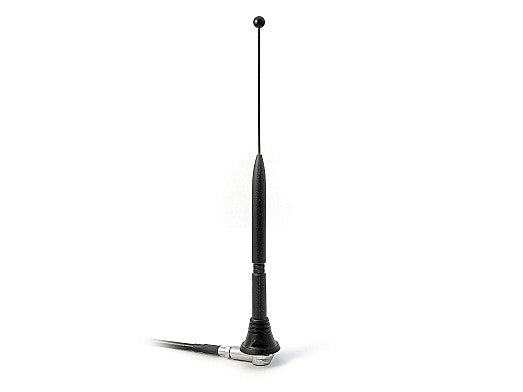

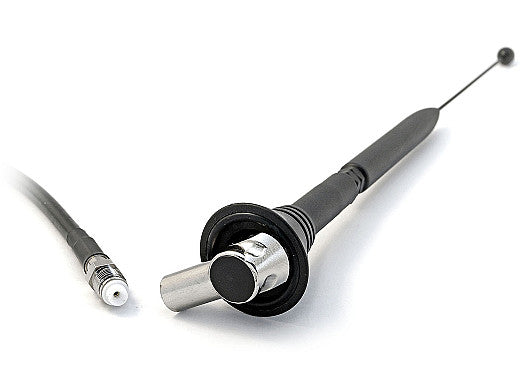

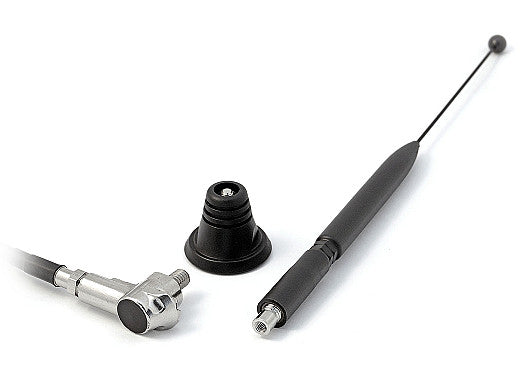

2J1504Bz 3G, 2G screw mount Antenna

This ground plane dependent antenna is designed for reliable 2G and 3G cellular connectivity in a wide range of applications, including mobile networks, asset tracking, telematics, and more. Its robust screw mount design ensures secure installation for external use, making it ideal for automotive, industrial, and security systems. The antenna features a detachable and customizable cable and connector, allowing for flexible integration into various setups.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.5:1, ~2.1:1
Efficiency (%): ~62.9, ~30.5
Peak Gain (dBi): ~3.5, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100
