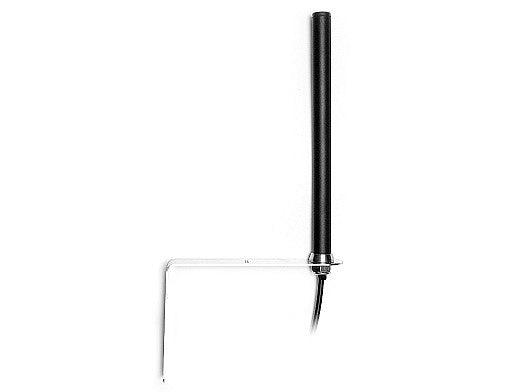

2J2115B-433-B05H 433MHz, ISM, LoRa wall mount Antenna SMA-M 300cm

This high-performance wall mount antenna is optimized for ISM, SigFox, and LoRa applications operating on the 433 MHz frequency. Its omnidirectional design ensures reliable 360-degree signal coverage, making it ideal for home and office monitoring, metering, asset tracking, and remote control devices. The antenna delivers strong signal strength even through walls and buildings, providing robust connectivity in urban environments. With a peak gain of ~2.4 dBi and high efficiency, it is well-suited for low-power, long-range wireless applications.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: RG58

Installation / Environmental

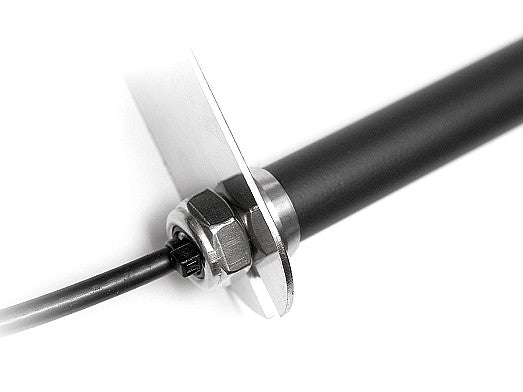

The fully waterproof (IP67) antenna pole housing (220 × Ø 16 mm) is manufactured with ASA material, brass antenna base, wall mount and includes a stainless-steel bracket. Standard order includes a SMA-Male connector and 300 cm long RG58 cable that has been tuned for optimal performance. We also offer a wide range of customized alternative connectors and cables upon request.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
LPWAN & IoT Communication: LoRa, SigFox, LPWA
Mounting: Wall Mount
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~2.0:1
Efficiency (%): ~53.0
Peak Gain (dBi): ~2.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
