2J2115B-915-B05H ISM wall mount Antenna IP67
2J2115B-915-B05H ISM wall mount Antenna IP67 is expected to be available in 4 weeks.
Couldn't load pickup availability
Manufacturer / (EU) Responsible Person
Manufacturer / (EU) Responsible Person
Description

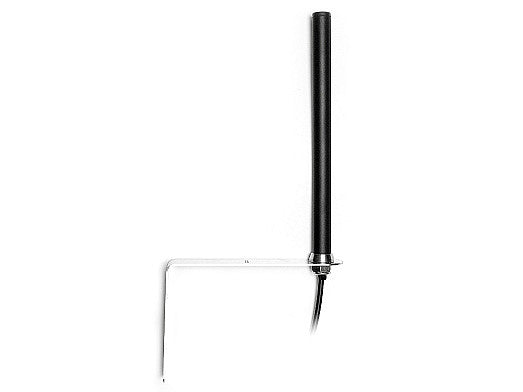

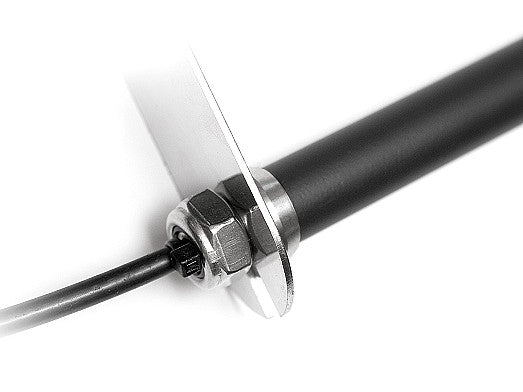

This high-performance omni-directional antenna is optimized for the 915 MHz ISM band, offering reliable and efficient wireless connectivity for a wide range of IoT, industrial, and smart city applications. Its ground plane independent design ensures consistent performance regardless of mounting surface, while the included antenna bracket and IP67 waterproof rating make it ideal for demanding outdoor environments. Suitable for use in remote monitoring, home automation, medical devices, and more.
Connections
915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
Technical Specifications
Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Location: External
Type: Single
Connection 1 - 915 MHz ISM
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.9:1
Efficiency (%): ~70.7
Peak Gain (dBi): ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
