2J2115B-915-B07H ISM wall mount Antenna IP67

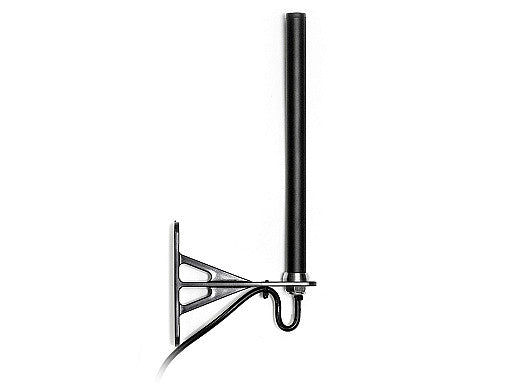

This high-efficiency omni-directional antenna is optimized for the 915 MHz ISM band, making it ideal for applications such as remote monitoring, home automation, medical devices, and more. Its ground plane independent design ensures reliable performance in a variety of installation environments. The antenna is waterproof with an IP67 rating and comes with an included mounting bracket for easy wall installation. Customizable cable and connector options are available to suit different project requirements.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Location: External
LPWAN & IoT Communication: LPWA, LoRa, Sigfox
Mounting: Wall Mount
Short-Range Wireless Standards: ZigBee
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.9:1
Efficiency (%): ~70.7
Peak Gain (dBi): ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
