2J  |  SKU: 2J2115K-B07H

2J2115K-B07H ISM wall mount Antenna

Regular price €0,00
Tax included


Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1955

Description

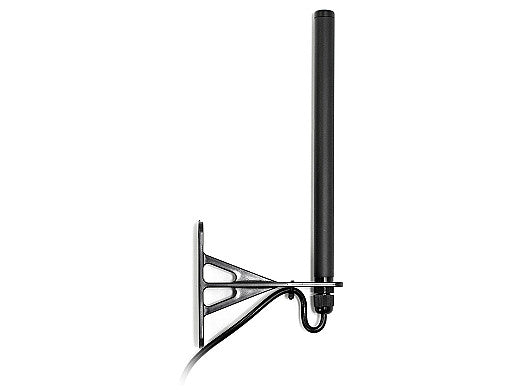

This high-efficiency omni-directional antenna is optimized for ISM 868 and 915 MHz frequencies, making it ideal for remote monitoring, home automation, medical devices, and a wide range of IoT applications. Its ground plane independent design ensures reliable performance in various installation environments. The included antenna bracket allows for secure wall mounting, and the antenna is available in both black and white color options.

Connections

868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM



Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: Sigfox, LoRa, LPWA, RFID
Mounting: Wall Mount
Short-Range Wireless Standards: ZigBee
Type: Single

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~1.4:1, ~1.6:1
Efficiency (%): ~63.2, ~62.4
Peak Gain (dBi): ~3.4, ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF
