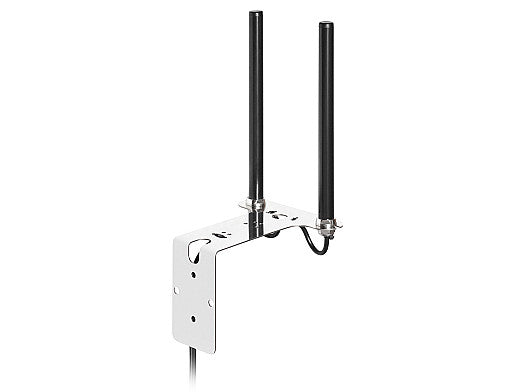

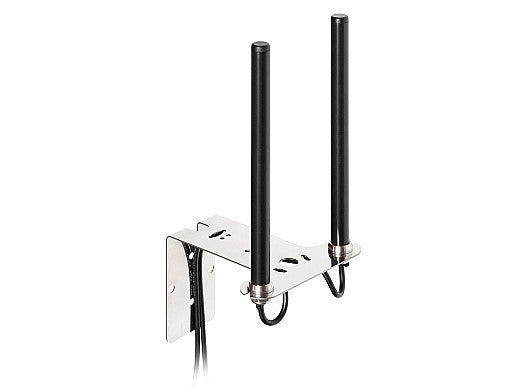

2J2183Ba-B17H 5G wall mount Antenna MIMO SMA-M 300cm

This high-performance wall mount antenna is engineered for reliable 5G, 4G LTE, 3G, and 2G cellular connectivity. Its ground plane independent design allows for flexible installation in a variety of environments, making it ideal for smart cities, industrial automation, entertainment, transportation, and public safety applications. With up to 4 dBi peak gain and omni-directional radiation, it ensures strong and consistent signal reception for demanding data and IoT deployments.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

The antenna is designed for wall-mounting and features a high-performance, ground plane independent design, making it ideal for applications where space is limited or where a traditional ground plane is not available. Its customized cable and connector options provide flexibility for integration with various devices and systems. Additionally, the antenna is certified to IP67 standards, ensuring its durability and suitability for use in harsh outdoor environments.
The standard cable length is 300 cm, with other lengths available upon request. The standard cable type is LL195, with other cable options also available. The antenna is compatible with most RF connectors, with SMA-Male as the standard connector type.
The 2J2183Ba-B17H antenna measures 325 × 135.5 × 155 mm (220 × Ø 16 mm) and can operate in a temperature range of -40 to +85 degrees Celsius and is RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Wall Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR: ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%): ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi): ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR: ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%): ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi): ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
