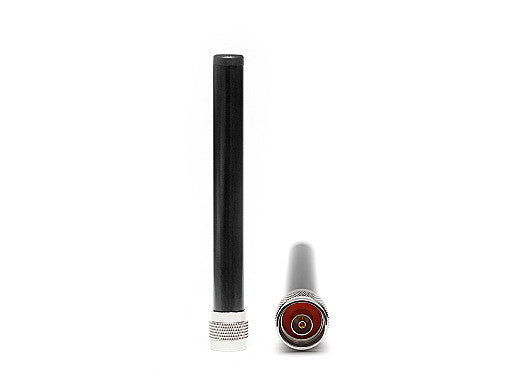

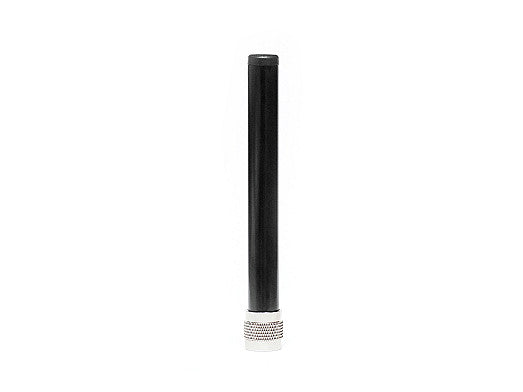

2J2202-C228N Wi-Fi 6E/7, ISM connector mount Antenna N-Male-RP

This high-gain tri-band antenna is designed for Wi-Fi 6E/7 and ISM applications, offering reliable performance across 2.4, 5.0, and 6.0 GHz frequency bands. Its ground plane independent dipole design ensures consistent efficiency and gain, making it ideal for demanding wireless environments. The antenna is suitable for a wide range of applications including smart home, IoT, entertainment, transportation, and industrial automation, providing robust connectivity for both commercial and consumer devices.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

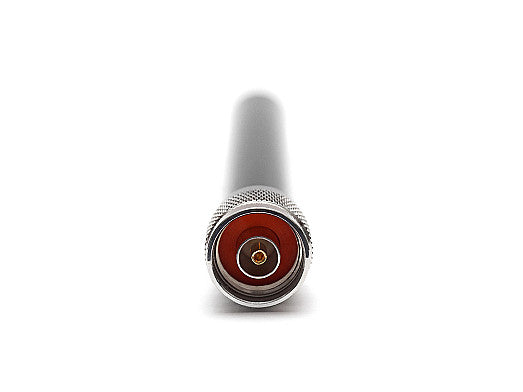

• Connector Type: N-Male-RP connector

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.4:1, ~1.9:1, ~4.0:1
Efficiency (%): ~70.7, ~66.8, ~40.5
Peak Gain (dBi): ~3.8, ~2.1, ~1.8
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25
