2J2202K-B07H Wi-Fi, ISM wall mount Antenna SMA-M 300cm

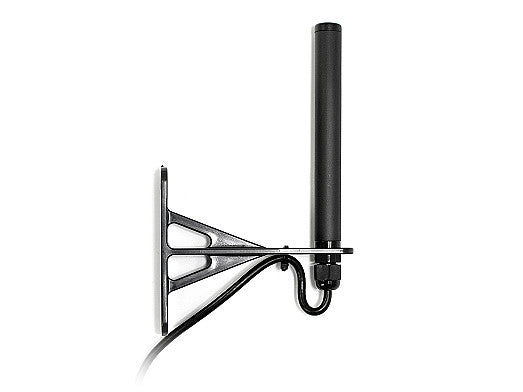

This dual-band antenna is designed for high-performance Wi-Fi and ISM applications, offering reliable connectivity across 2.4 GHz and 5 GHz frequency bands. Its ground plane independent design ensures consistent performance regardless of mounting surface, making it ideal for a wide range of environments. The included antenna bracket allows for easy wall installation, and the antenna is suitable for use in smart home, industrial, transportation, and public Wi-Fi deployments.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Wall Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.5:1, ~1.8:1
Efficiency (%): ~59.9, ~44.9
Peak Gain (dBi): ~1.6, ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
