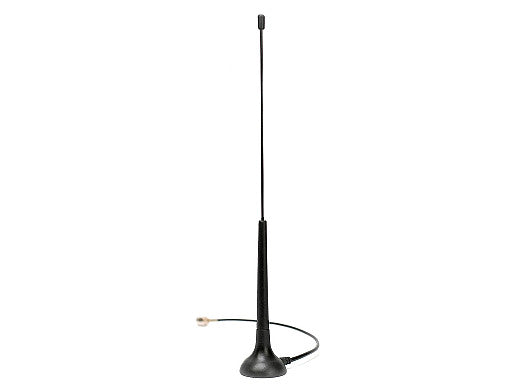

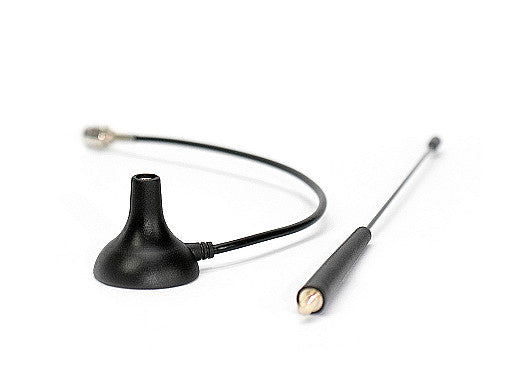

2J3104M 3G, 2G cellular magnetic mount Antenna

This ground plane dependent magnetic mount antenna is designed for reliable 3G and 2G cellular connectivity. Its compact form factor and magnetic base make it ideal for quick installation on metal surfaces, supporting applications such as mobile networks, asset tracking, telematics, and more. The antenna delivers stable performance with high efficiency and peak gain, making it suitable for automotive, industrial, and security systems.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.6:1, ~1.5:1
Efficiency (%): ~48.6, ~34.5
Peak Gain (dBi): ~2.2, ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
