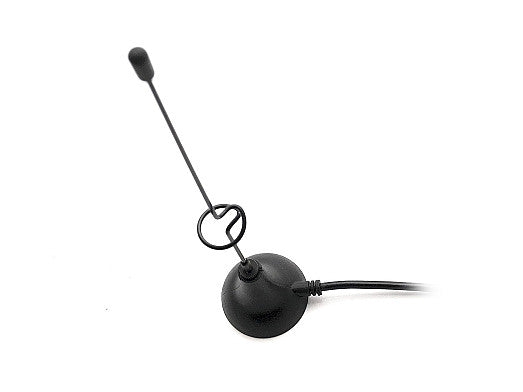

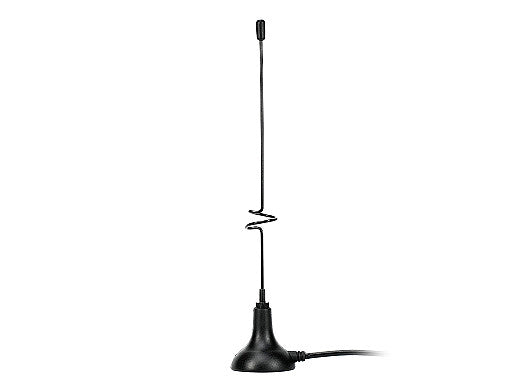

2J3415M-433 ISM magnetic mount Antenna customizable

This low-profile antenna is designed for reliable ISM band performance at 433 MHz, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its compact form factor and magnetic mount allow for quick and flexible installation on metal surfaces. The antenna is ground plane dependent and offers customizable cable and connector options to suit a variety of deployment needs.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.1:1
Efficiency (%): ~61.7
Peak Gain (dBi): ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
