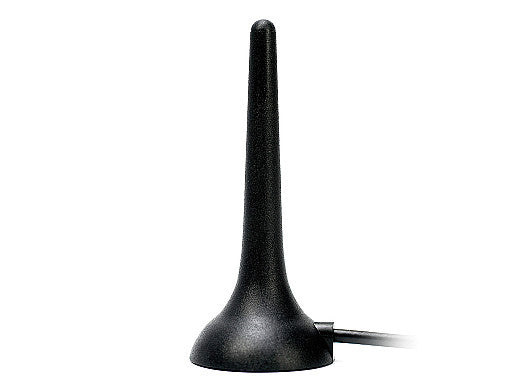

2J3702M-2.4 ISM magnetic mount Antenna IP67

This low-profile antenna is designed for reliable performance in the 2.4 GHz ISM band, making it ideal for Wi-Fi, Bluetooth, ZigBee, and other short-range wireless applications. Its compact form factor and magnetic mount allow for easy installation on metallic surfaces, while the IP67 rating ensures durability in harsh environments. Suitable for smart home, industrial, transportation, and IoT deployments where robust connectivity is essential.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~1.2:1
Efficiency (%): ~43
Peak Gain (dBi): ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
