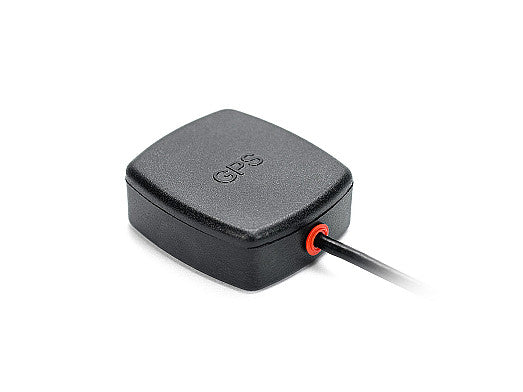

2J4301MPFx GNSS Antenna adhesive magnetic mount

This active GNSS antenna is designed for high-precision positioning and navigation applications. Its compact form factor and ground plane independence make it ideal for installations where space is limited or a ground plane is unavailable. The antenna features a robust IP67-rated housing for reliable outdoor use and includes an adhesive mounting sticker for easy installation. With high active gain and post-filtering, it delivers strong signal reception for GPS, QZSS, and Galileo systems, making it suitable for logistics, smart cities, fleet management, autonomous vehicles, and more.

Connections

GPS/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Type: Single
Satellite Navigation: GNSS

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
VSWR: <1.2:1
Efficiency (%): ~69
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3V, 24 @ 5V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 138 Max
