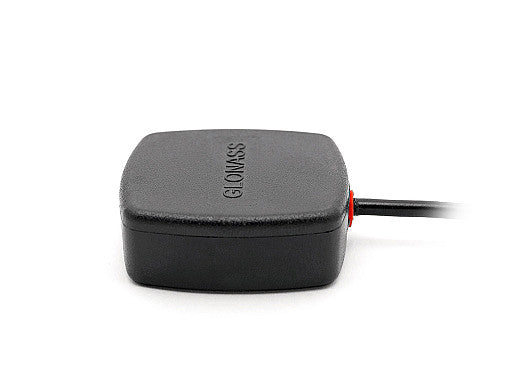

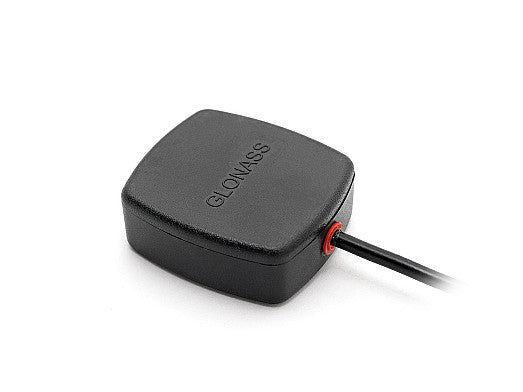

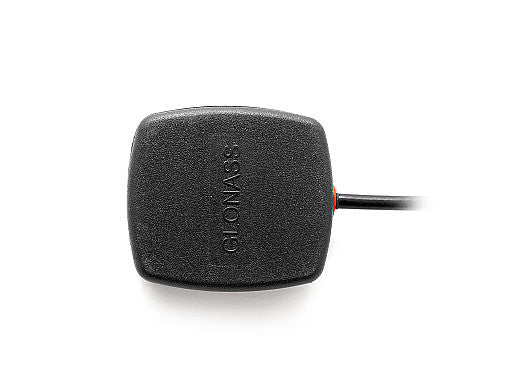

2J4301MPGF GNSS adhesive magnetic mount Antenna

This active GNSS antenna is designed for reliable and precise satellite navigation across a wide range of applications. Its ground plane independent design and integrated pre-filter deliver high performance and low noise, making it ideal for demanding environments. The antenna supports GPS, GLONASS, Galileo, and QZSS systems, ensuring broad compatibility for navigation, asset tracking, fleet management, smart cities, and more. The included adhesive mounting sticker and magnetic base provide flexible installation options for both temporary and permanent setups.

Connections

GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
Saw Filter Type: Pre-Filter
ESD Protection (kV): 2
