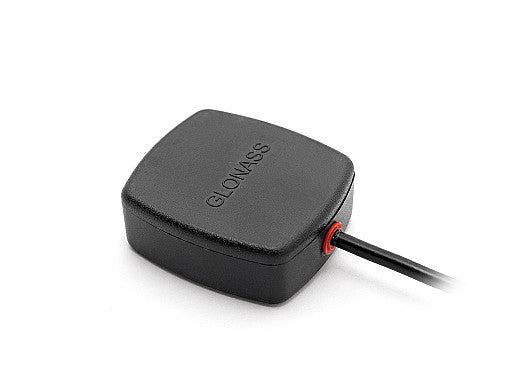

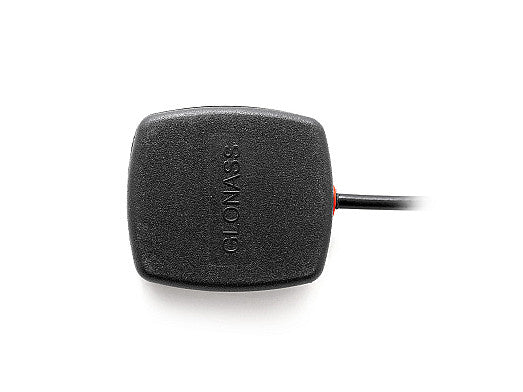

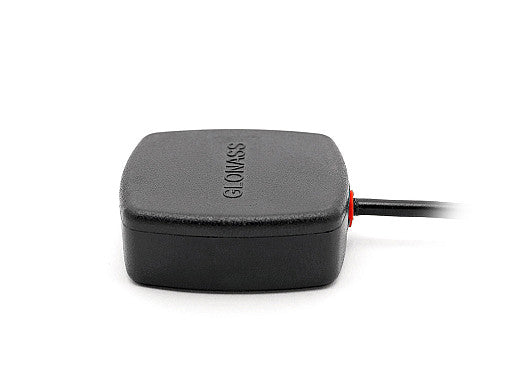

2J4301MPGFx GNSS Antenna adhesive/magnetic mount

This active GNSS antenna is designed for reliable satellite navigation across a wide range of applications. Its ground plane independent design and post-filter technology ensure high signal quality and robust performance, even in challenging environments. The antenna is suitable for use in logistics, smart cities, fleet management, autonomous vehicles, surveying, and more. With both adhesive and magnetic mounting options, it offers flexible installation for various surfaces and mobile assets.

Connections

GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Type: Single
Satellite Navigation: GNSS

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <1.2:1
Efficiency (%): ~65, ~68
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3V, 24 @ 5V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 138 Max
