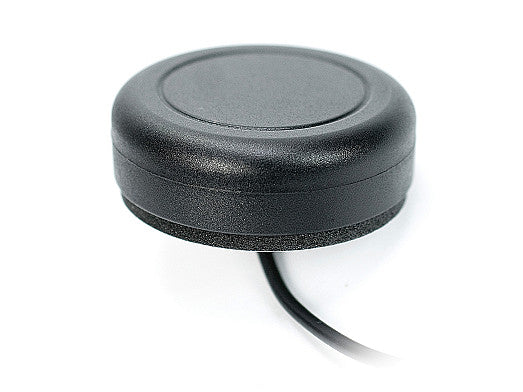

2J4715B-915 ISM screw mount Antenna IP69K

This low-profile antenna is designed for reliable performance in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its ground plane independence and robust IP69K/IP67-rated housing ensure durability in harsh environments. The screw mount design allows for secure installation on a variety of surfaces, supporting applications that require consistent connectivity and protection against water and dust ingress.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C

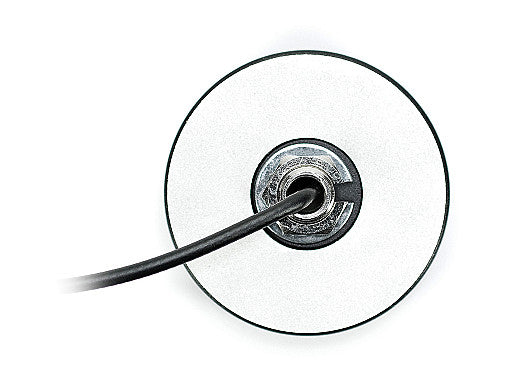

Mounting: Screw Mount
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.4:1
Efficiency (%): ~37
Peak Gain (dBi): ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
