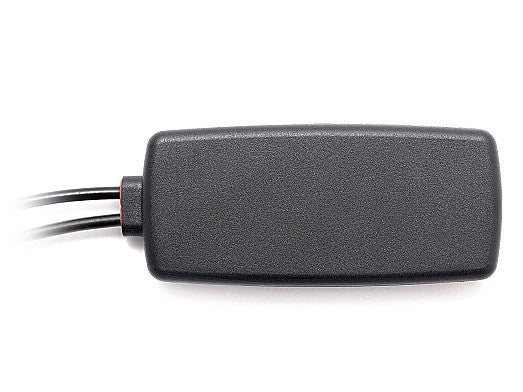

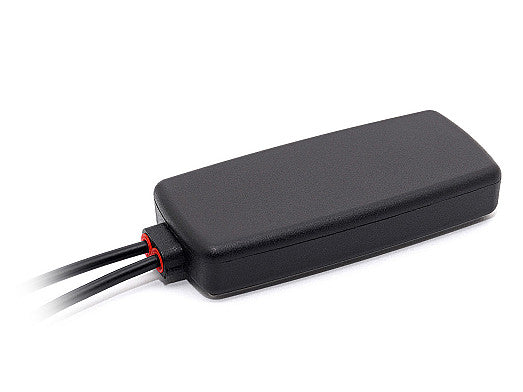

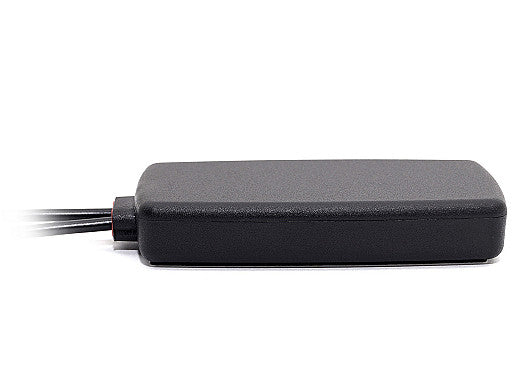

2J4800PGF 3G/2G, GNSS Antenna adhesive mount

This low-profile combination antenna is designed for reliable 3G/2G cellular and GNSS (GPS, GLONASS, Galileo, QZSS) connectivity. Its ground plane independent design and pre-filtered active GNSS element ensure high performance and signal integrity, making it ideal for asset tracking, automotive, telematics, and remote monitoring applications. The adhesive mount allows for flexible installation on a variety of surfaces, supporting both mobile and fixed deployments.

Connections

3G/2G/CELL
GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.3:1
Efficiency (%): ~57, ~49
Peak Gain (dBi): ~3.0, ~1.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 – 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
