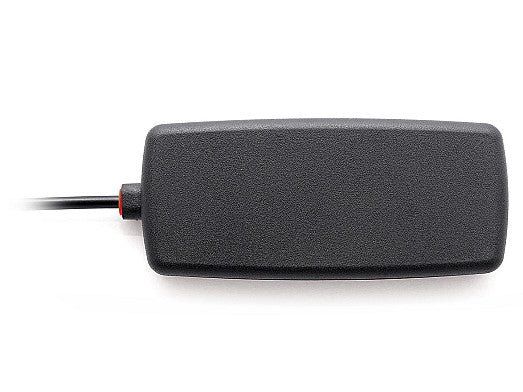

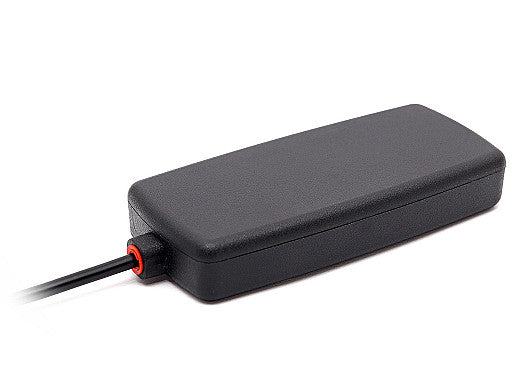

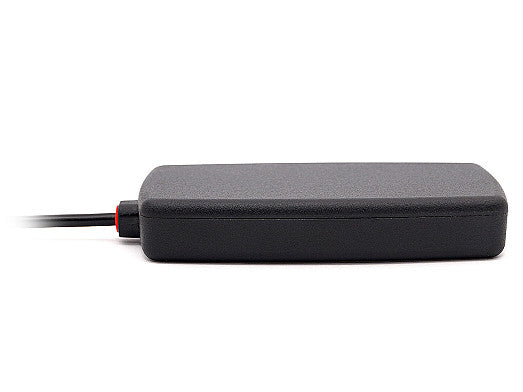

2J4802P Wi-Fi 6E/7, ISM Antenna adhesive Mount

This low-profile, ground plane independent antenna is designed for high-performance Wi-Fi 6E/7 and ISM band applications. Its adhesive mount allows for flexible installation on a variety of surfaces, making it ideal for smart home, IoT, entertainment, transportation, and industrial environments. The antenna supports a wide range of wireless standards, ensuring reliable connectivity for modern devices and networks. Its robust construction with IP67 and IP69 ratings provides excellent protection against dust and water, making it suitable for both indoor and outdoor use.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~2.3:1, ~1.5:1, ~1.7:1
Efficiency (%): ~42.4, ~25.0, ~25.0
Peak Gain (dBi): ~3.5, ~1.7, ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
