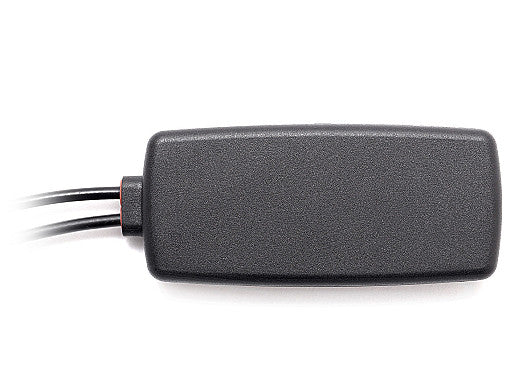

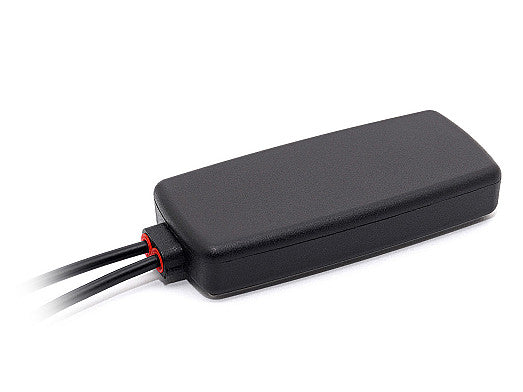

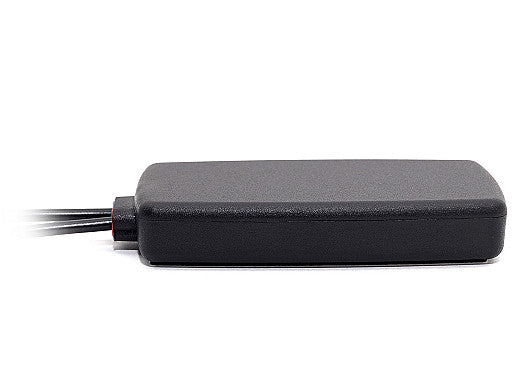

2J4802Pa Wi-Fi 6E/7, ISM Antenna adhesive MIMO IP67/IP69

This low-profile, ground plane independent antenna is designed for high-performance Wi-Fi 6E and Wi-Fi 7 connectivity across the 2.4, 5.0, and 6.0 GHz bands. Its 2-in-1 MIMO configuration ensures robust, reliable wireless performance for demanding applications such as smart home, smart cities, entertainment, healthcare, transportation, and IoT deployments. The adhesive mount allows for flexible installation on a variety of surfaces, making it ideal for both fixed and mobile environments. The antenna is rated IP67 and IP69 for superior protection against dust and water, ensuring durability in harsh conditions.

Connections

2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Type: Combination

Connection 1 - Wi-Fi 6E/7 MIMO

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.2:1, ~1.5:1, ~1.6:1
Efficiency (%): ~50.1, ~46.8, ~45.1
Peak Gain (dBi): ~5.5, ~6.2, ~4.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Wi-Fi 6E/7 MIMO

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.3:1, ~1.7:1, ~2.0:1
Efficiency (%): ~50.3, ~45.5, ~40.4
Peak Gain (dBi): ~4.0, ~6.1, ~5.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
