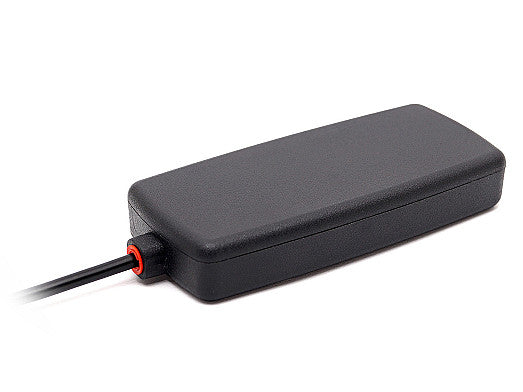

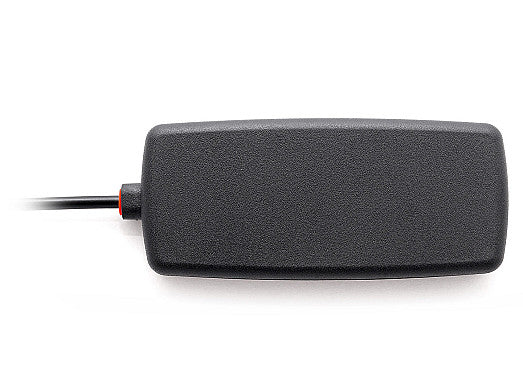

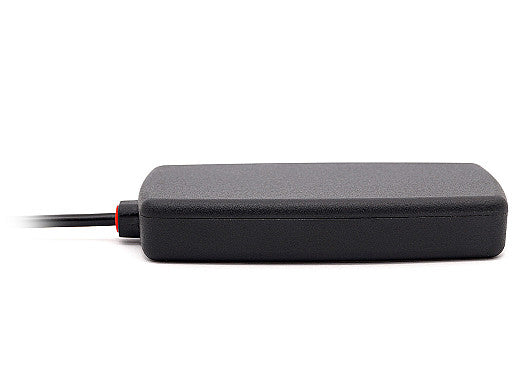

2J4804P 3G, 2G Antenna adhesive Mount customizable

This low-profile antenna is designed for reliable 3G and 2G cellular connectivity in a wide range of applications, including mobile networks, machine control, asset tracking, wearables, and more. Its ground plane independent design ensures consistent performance regardless of mounting surface, making it ideal for challenging installation environments. The antenna is IP67 and IP69 rated for robust protection against dust and water, and offers customizable cable and connector options to suit specific project requirements.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.3:1
Efficiency (%): ~61, ~55
Peak Gain (dBi): ~3.6, ~2.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Download Datasheet PDF
