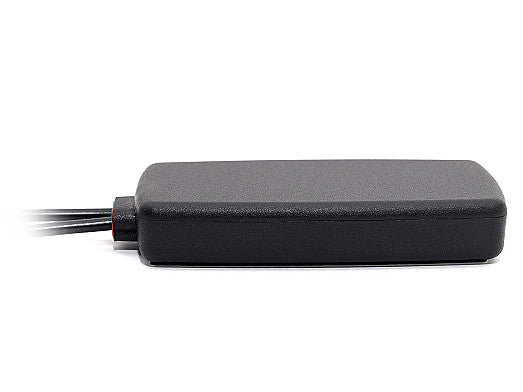

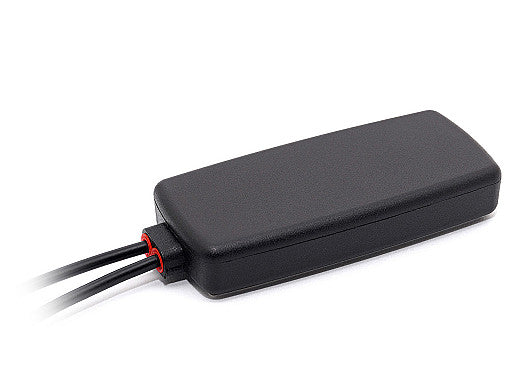

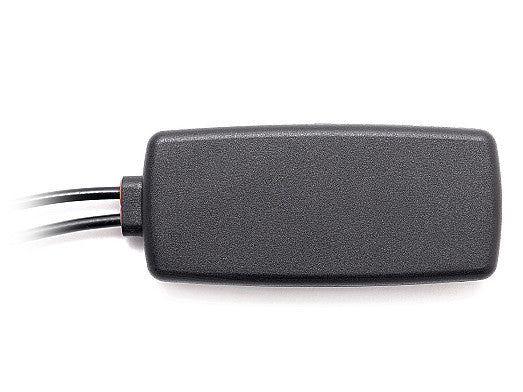

2J4805P 3G/2G, Wi-Fi, ISM Antenna adhesive External Combination

This low-profile combination antenna is designed for reliable performance across both cellular (3G/2G) and short-range wireless (Wi-Fi, ISM) applications. Its ground plane independent design ensures consistent operation in a wide range of installation environments. The adhesive mount allows for quick and secure attachment to various surfaces, making it ideal for automotive, asset tracking, smart home, and industrial IoT deployments. The antenna is rated IP67 and IP69 for robust protection against dust and water, supporting use in demanding outdoor or mobile scenarios.

Connections

3G/2G/CELL
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 3G, 2G
Location: External
Mounting: Adhesive Mount
Type: Combination

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.4:1, ~1.4:1
Efficiency (%): ~53, ~48
Peak Gain (dBi): ~2.1, ~1.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.2:1, ~1.3:1
Efficiency (%): ~42, ~27
Peak Gain (dBi): ~2.5, ~0.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
