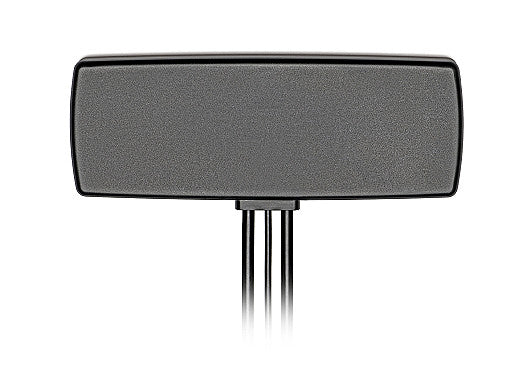

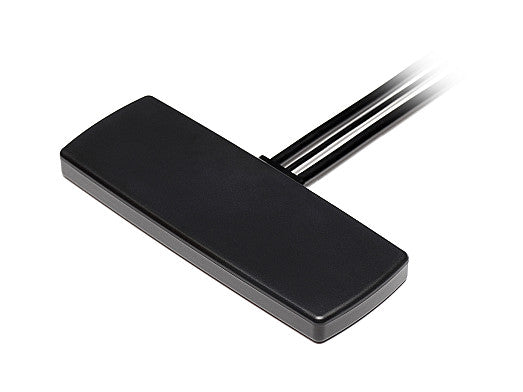

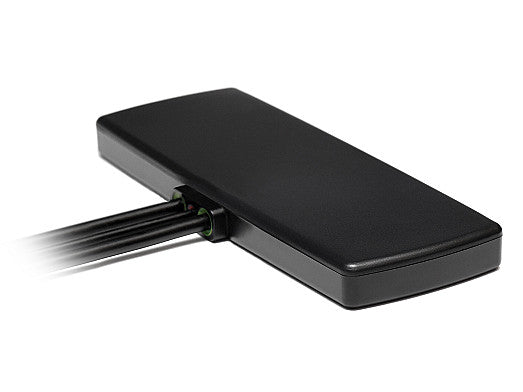

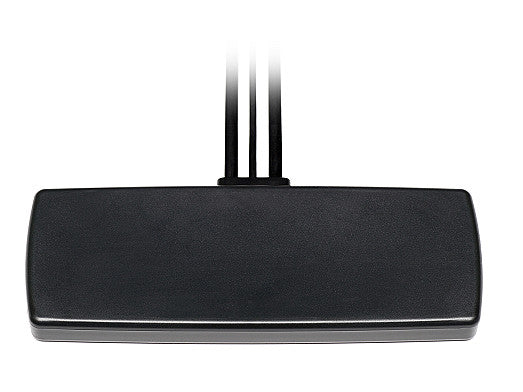

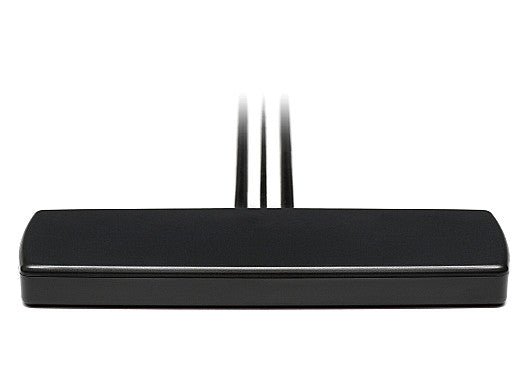

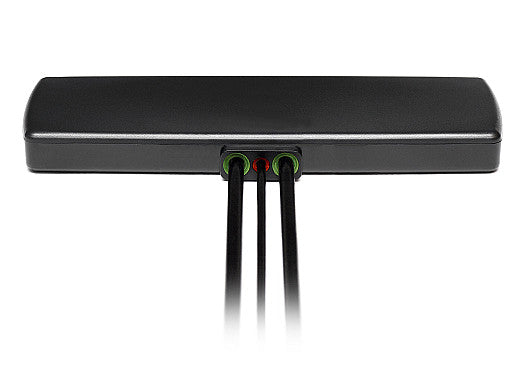

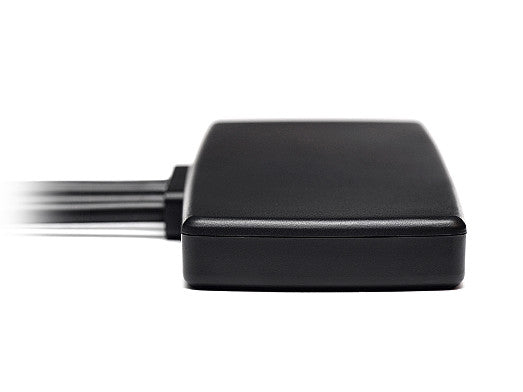

2J4A02Pb Wi-Fi 6E/7, ISM Antenna adhesive Condor 3-in-1 MIMO

This compact antenna delivers high-performance tri-band Wi-Fi 6E and Wi-Fi 7 connectivity in a 3-in-1 MIMO configuration, making it ideal for demanding wireless applications. Its reduced size allows for discreet installation without sacrificing efficiency or speed. The antenna supports Wi-Fi, Bluetooth, ZigBee, ISM, SigFox, and LoRa standards, ensuring reliable, high-bandwidth data transfer with minimal interference. Designed for easy adhesive mounting, it is suitable for a wide range of environments, including smart home, industrial, automotive, and public Wi-Fi deployments. The robust construction with IP67 and IP69 ratings provides excellent protection against dust, water, and harsh outdoor conditions, while the UV coating ensures durability in extreme environments.

Connections

3× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

The antenna can be easily installed or hidden in any part of your environment and application; on the top or bottom surfaces including windshields, dash, plastic, etc., as it comes equipped with a separate double adhesive pad that secures it safely. This product includes a low loss cable with fully customized length and connector that provides maximum antenna performance and reliability, avoiding drop connections, higher speed data, higher gain, etc. The 3-in-1 feature allows for quick handling in places where other solutions fail to implement and eliminates the need for extensive labor involved in the installation of the product, saving time and resources. With IP67 and IP69 ingress rating, this product provides maximum protection against dust and water and allows high pressure and steam cleaning. Passing vibration test provides extra robustness ensuring longevity of the product, making it a cost-effective solution. The UV coating allows maximum protection against extensive outdoor use in extreme environments and temperatures.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~1.5:1, ~2.0:1
Efficiency (%): ~52.1, ~54.4, ~50.0
Peak Gain (dBi): ~2.4, ~3.9, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.7:1, ~2.1:1
Efficiency (%): ~48.6, ~40.7, ~33.8
Peak Gain (dBi): ~1.7, ~3.5, ~5.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~1.5:1, ~2.6:1
Efficiency (%): ~65.8, ~60.6, ~41.3
Peak Gain (dBi): ~2.4, ~4.6, ~4.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
