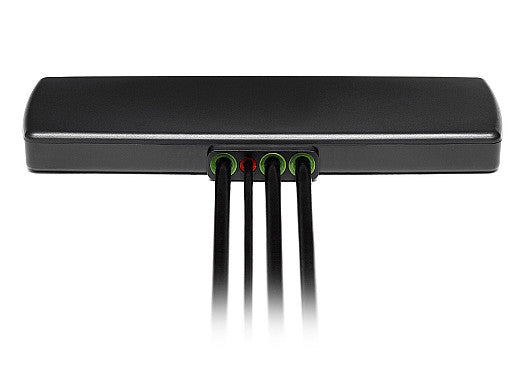

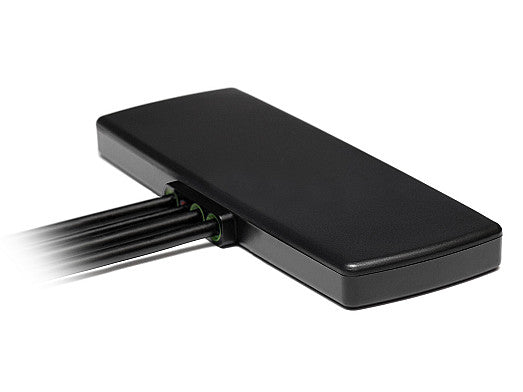

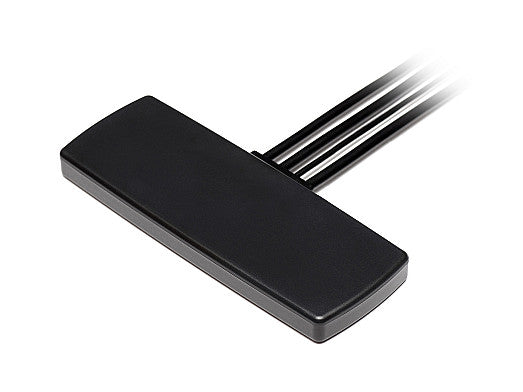

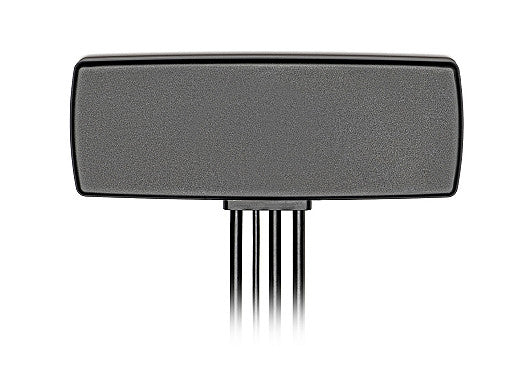

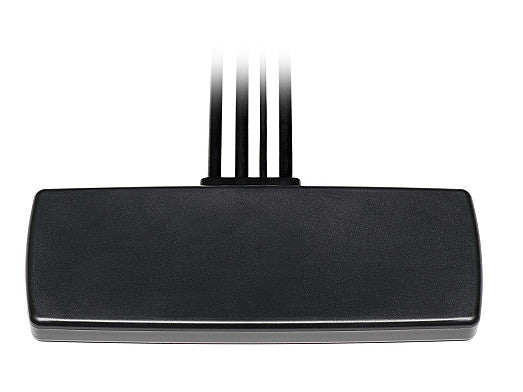

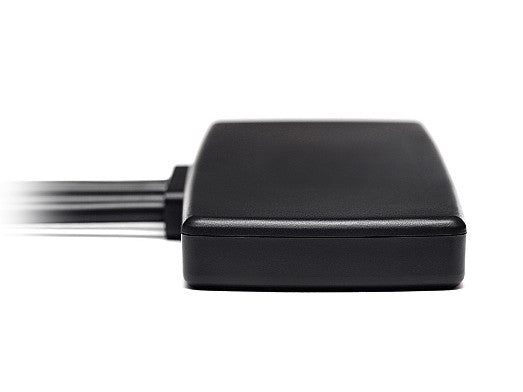

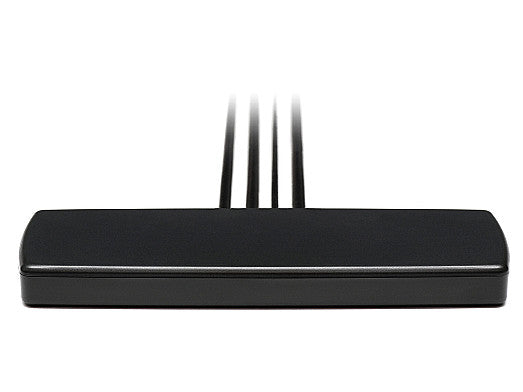

2J4A02Pc Wi-Fi 6E/7, ISM Antenna adhesive Condor 4-in-1 4x MIMO Custom Cable/Connector IP67/IP69

This compact 4-in-1 antenna delivers high-performance Wi-Fi 6E and Wi-Fi 7 connectivity across the 2.4, 5.0, and 6.0 GHz bands, supporting MIMO for maximum data throughput and reliability. Its low-profile design is up to 50% smaller than comparable antennas, making it ideal for installations where space is limited. The antenna is ground plane independent and features a robust, UV-protected housing with IP67 and IP69 ratings for superior resistance to dust, water, and harsh environments. Designed for easy adhesive mounting, it is suitable for a wide range of applications including smart home, IoT, transportation, and industrial automation.

Connections

4× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

The antenna can be easily installed or hidden in any part of your environment and application; on the top or bottom surfaces including windshields, dash, plastic, etc., as it comes equipped with a separate double adhesive pad that secures it safely. This product includes a low loss cable with fully customized length and connector that provides maximum antenna performance and reliability, avoiding drop connections, higher speed data, higher gain, etc. 4-in-1 feature allows for a quick handling in places where other solutions fail to implement and eliminates the need for the extensive labor involved in the installation of the product, saving time and resources.
With IP67 and IP69 ingress rating, this product provides maximum protection against dust and water and allows high pressure and steam cleaning. Passing vibration test provides extra robustness ensuring longevity of the product, making it a cost-effective solution. The UV coating allows maximum protection against extensive outdoor use in extreme environments and temperatures.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~1.5:1, ~2.0:1
Efficiency (%): ~52.1, ~54.4, ~50.0
Peak Gain (dBi): ~2.4, ~3.9, ~4.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.7:1, ~2.1:1
Efficiency (%): ~48.6, ~40.7, ~33.8
Peak Gain (dBi): ~1.7, ~3.5, ~5.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.8:1, ~1.5:1, ~2.6:1
Efficiency (%): ~65.8, ~60.6, ~41.3
Peak Gain (dBi): ~2.4, ~4.6, ~4.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.9:1, ~1.9:1, ~2.5:1
Efficiency (%): ~62.0, ~50.6, ~41.4
Peak Gain (dBi): ~4.5, ~5.2, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
