2J4C01P GNSS Antenna adhesive mount SMA-M 300cm

This compact GNSS antenna is engineered for high-precision navigation in automotive, fleet management, and telematics applications. Its small, box-shaped design and peel-and-stick adhesive mount enable both temporary and permanent installations on metal surfaces such as vehicles, poles, and buildings. The antenna delivers high active gain for reliable signal strength, ensuring consistent performance in demanding environments.

• Ideal for navigation, automotive, fleet management, and telematics
• High active GNSS gain for maximum precision
• Easy adhesive mounting for flexible installation
• Robust ABS housing for durability

Connections

GPS/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG174

Installation / Environmental

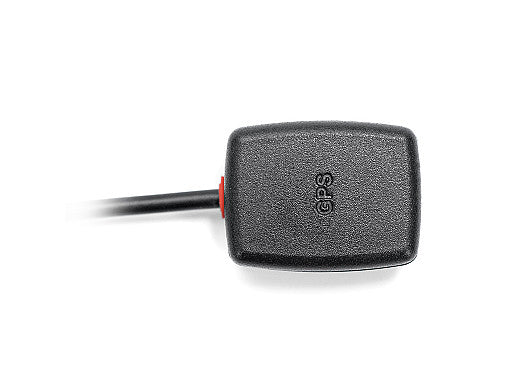

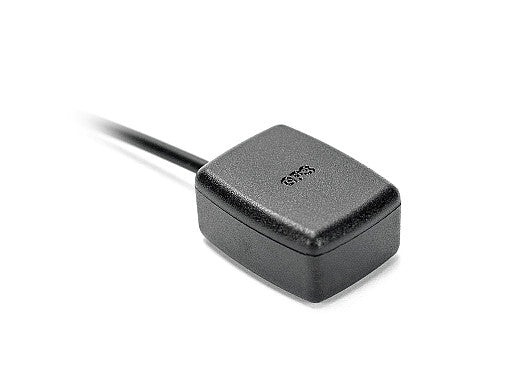

The antenna housing and base are manufactured with high quality ABS material that is designed to operate in temperatures ranging -40C to +85C without any compromise to performance. The small box-shaped antenna housing measures 28 x 21.3 x 13/14 mm and comes with a magnetic mount and an easy peel-n-stick adhesive mount that allows for temporary or long-term installations on metal surfaces such as vehicles, poles, and buildings.

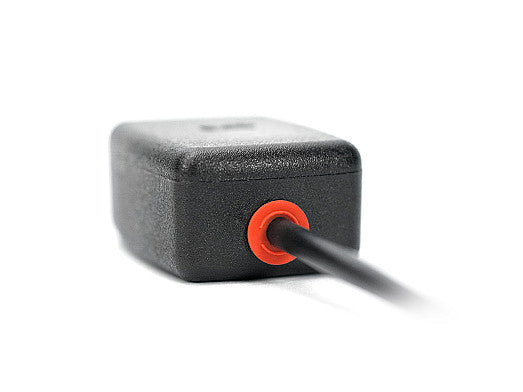

2J4C01P includes a standard SMA-Male connector and a 300 cm long flexible RG174 cable tuned for optimal GNSS performance. We offer a large range of alternative connectors and cables to meet any customization needs. It is important to match the right antenna with the job and our expert engineers are available for installation support, any customization needs and antenna selection support.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Single

Connection 1 - GNSS

Standards: GPS/QZSS/Galileo
Frequency: 1575.42 MHz
VSWR: ~1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 26-27 @ 3-5 V
Saw Filter Type: No Filter
Voltage (V): 2.7 - 5.5
Current (mA): 15 - 25
Power Consumption (mW): 40-138
