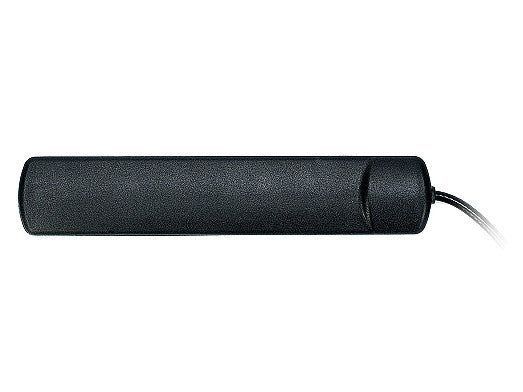

2J5004PL 3G, 2G Antenna adhesive mount customizable

This low-profile antenna is designed for reliable 3G and 2G cellular connectivity in a wide range of applications. Its ground plane independent design ensures consistent performance, even when mounted on non-metallic surfaces. The antenna is suitable for use in mobile networks, machine control, asset tracking, wearables, automotive, and telecommunication systems. Its customizable cable and connector options make it adaptable to various installation requirements.

Connections

3G/2G/CELL

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~1.5:1, ~1.4:1
Efficiency (%): ~52, ~43
Peak Gain (dBi): ~3.5, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
