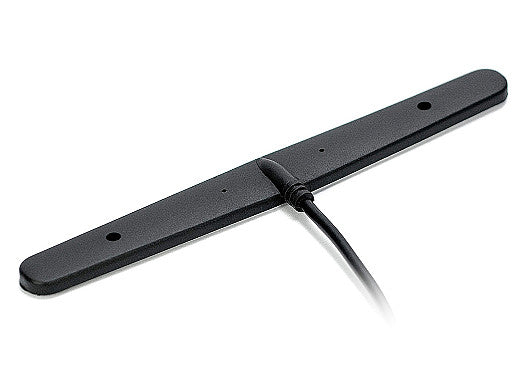

2J5115P-915 ISM Antenna adhesive mount

This high-performance antenna is designed for reliable operation in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its flexible housing and low-profile design allow for easy integration into a variety of environments, while ground plane independence ensures consistent performance regardless of installation surface. The adhesive mount provides a simple and secure installation method, suitable for both indoor and outdoor deployments.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.2:1
Efficiency (%): ~62.4
Peak Gain (dBi): ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
