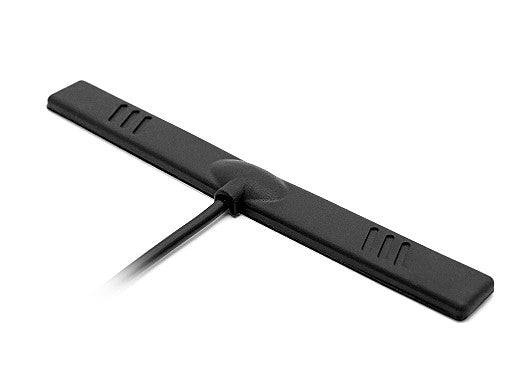

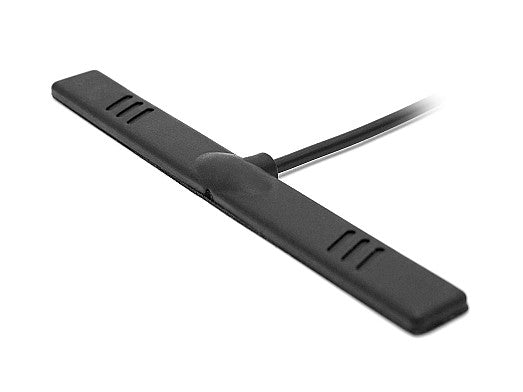

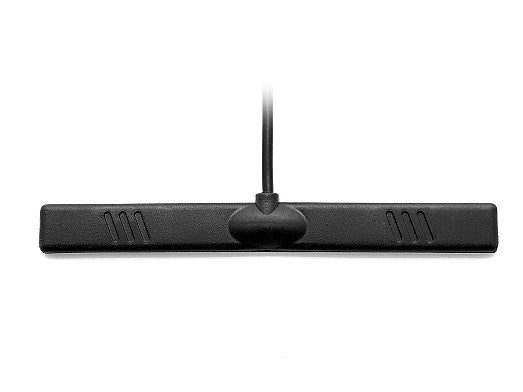

2J5202P Wi-Fi 6E/7, ISM Antenna adhesive customizable

This low-profile adhesive antenna is designed for next-generation wireless connectivity, supporting Wi-Fi 6E, Wi-Fi 7, and ISM bands. Its ground plane independent design and flexible housing make it ideal for a wide range of applications, including smart home, entertainment, healthcare, transportation, and IoT devices. The antenna offers high peak gain and is customizable for cable and connector options, ensuring seamless integration into various environments.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Adhesive Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, Bluetooth, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.5:1, ~2.2:1, ~1.8:1
Efficiency (%): ~63.0, ~41.6, ~45.4
Peak Gain (dBi): ~3.7, ~3.3, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
