2J5215P-433 ISM Antenna flexible adhesive mount customizable

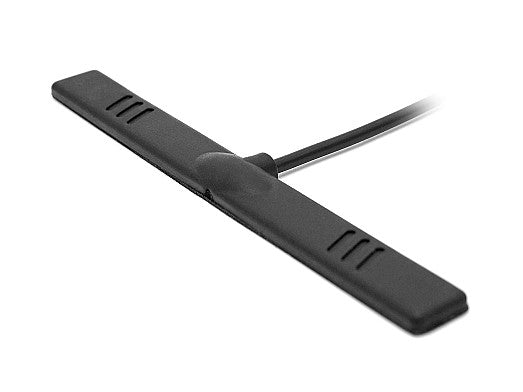

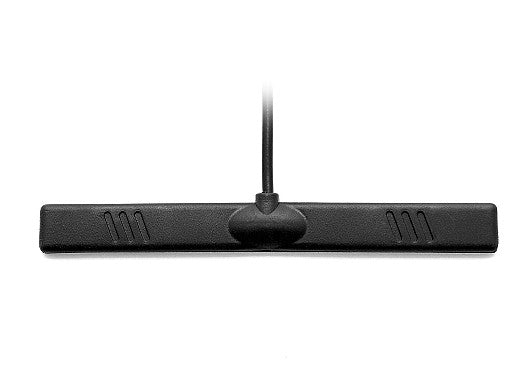

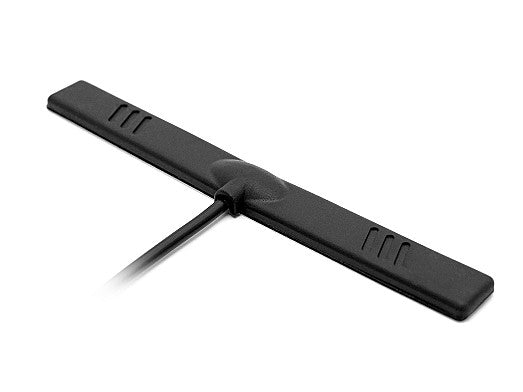

This high-performance antenna is designed for reliable operation in the 433 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its low-profile, flexible housing allows for easy installation in space-constrained environments, while ground plane independence ensures consistent performance across various mounting surfaces. The antenna is customizable to meet specific cable and connector requirements, providing versatility for a wide range of wireless solutions.

Connections

433MHz/Sigfox/LoRa/LPWA/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - 433 MHz ISM

Standards: ISM, LoRa
Frequency: 433-435 MHz
VSWR: ~1.8:1
Efficiency (%): ~42.6
Peak Gain (dBi): ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50

Download Datasheet PDF
