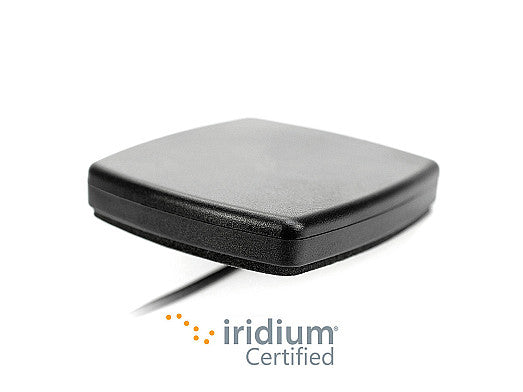

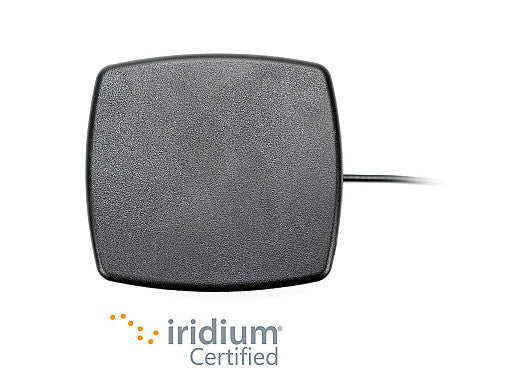

2J6026B Iridium screw mount Antenna Low Profile

This low-profile antenna is engineered for optimal Iridium satellite connectivity, delivering reliable performance within the 1616–1627 MHz frequency range. Its compact design and ground plane independence make it ideal for a wide range of global satellite communication applications, including commercial, emergency, transportation, and asset tracking systems. The hemispherical radiation pattern ensures consistent signal strength and quality, while right-hand circular polarization (RHCP) helps reject multi-path interference. Durable ABS housing provides protection in extreme environments, and the antenna is certified to IP67 standards for water and dust resistance. Customizable cable lengths and connector types are available to suit various installation needs.

Connections

IRIDIUM

Installation / Environmental

The outstanding feature of this antenna is that it has a sleek and compact design with a maximum height of 14.7 mm.

The ABS housing material offers durability and protection in extreme environments withstanding temperatures between -40C and +85C. With low-profile dimensions (80 x 74 x 14.7 mm) and ground plane independence, this product is manufactured with RoHS compliance.

This package is fully customizable with variable cable lengths and connector types. Several installation options are available such as adhesive, magnetic and screw mount.

Technical Specifications

Operating Temperature: -40 °C to +85 °C

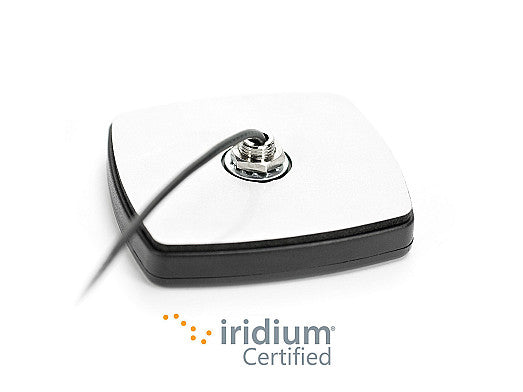

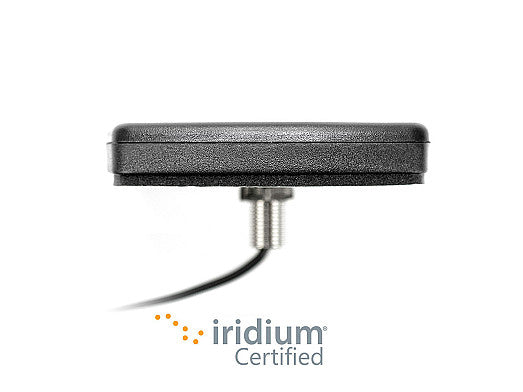

Mounting: Screw Mount
Type: Single
Location: External

Connection 1 - IRIDIUM

Standards: IRIDIUM
Frequency: 1616-1627 MHz
VSWR: ~1.4:1
Efficiency (%): ~70
Passive Gain (dBiC): ~3.5
Impedance (Ohm): 50
Axial Ratio (dB): 3 max
Radiation Pattern: Hemispherical
Polarization: RHCP
